36" x 75" Surface Conditioning Belts (Non-Woven)
36" x 75" Surface Conditioning Belts (Non-Woven)
Available in stock (50000)
Appliance fronts, elevator panels and architectural cladding are judged on one thing: whether the grain on every panel matches. A 36-inch wide belt machine running one of these 36" x 75" surface conditioning belts produces that match mechanically, feeding each stainless or aluminum panel under a non-woven web that lays a straight, even satin from edge to edge and repeats it on the next panel without operator variation.
The belt is aluminum oxide grain in a nylon web on a reinforced scrim backing built for automated machine tension. Four grades are stocked, Coarse, Medium, Very Fine and Ultra Fine, one belt per order, covering finish stripping and rust removal at one end and a fine pre-buff satin at the other.
- Repeatable directional satin on stainless and aluminum panels, machine-fed rather than hand-finished
- Fits 36-inch wide belt sanders and finishing machines specified for a 75-inch belt

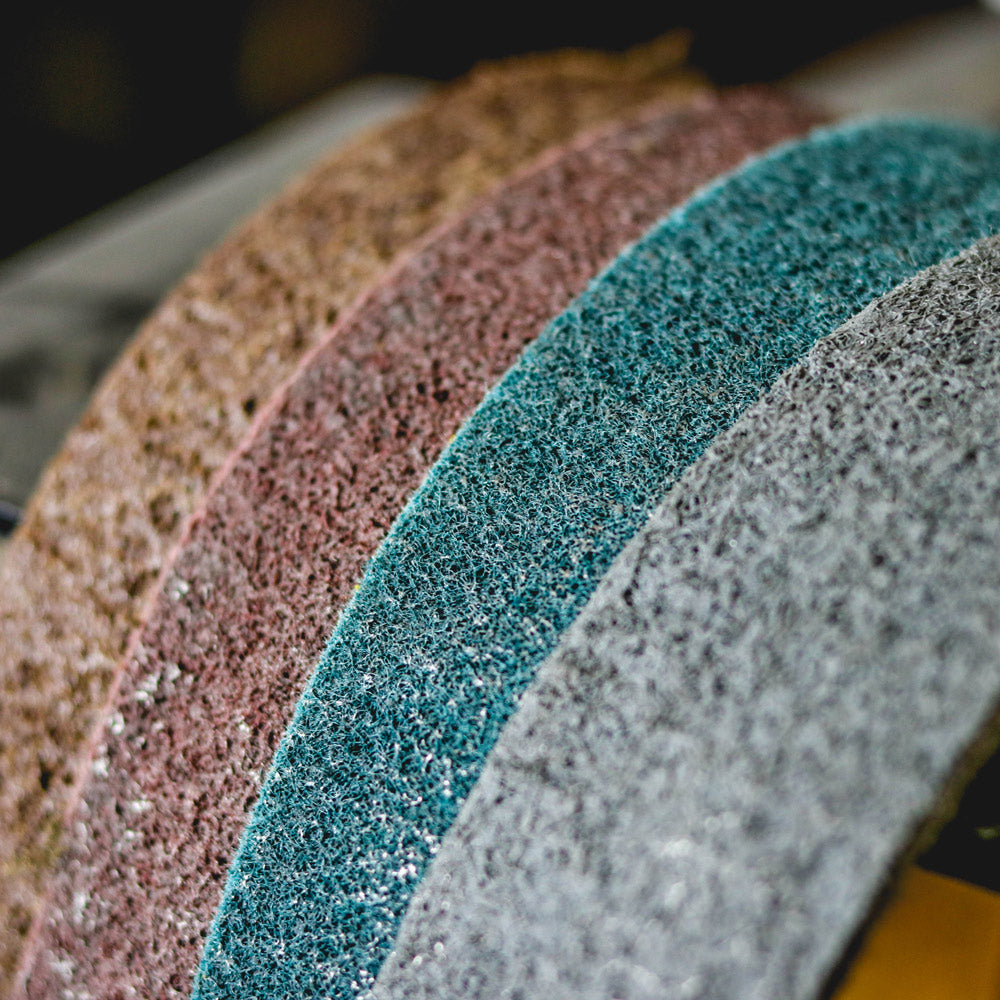

- Four grades from brown Coarse to grey Ultra Fine, sold individually
- Reinforced scrim backing holds tension and tracks on an oscillating head
- Web runs cool and sheds swarf, so the finish stays even through the belt's life
- Converted in Anaheim, California; free shipping on orders over $200
Which grade should you run for panel work?
All four grades share the same web and backing. The grain inside the web sets how aggressive the belt is and how fine the finished grain line looks.
- Coarse (40-60 Grit), brown: stripping and cleaning. It takes old paint, powder coat haze, light rust and oxidation off sheet without gouging it the way a coated belt would, and it gives aluminum a bold brushed grain. It removes measurable metal under pressure, so run it at the lightest head setting that does the job.
- Medium (80-120 Grit), maroon: deburring and a medium satin. Behind a 120 grit coated belt it rolls the burr on laser-cut and sheared blanks and leaves an even matte that paint and powder coat adhere to.
- Very Fine (180-240 Grit), blue: the #4-style panel finish. Behind a 180–220 grit coated belt on stainless sheet it produces the long, uniform directional grain that appliance and architectural panels are specified to match.
- Ultra Fine (320-400 Grit), grey: fine satin and pre-buff. Run after Very Fine on aluminum trim, appliance fronts and parts headed for buffing or anodizing. Ultra Fine refines an existing finish and will not remove scratches by itself.
Panel shops normally keep Very Fine on the machine and a Medium on the rack; Coarse and Ultra Fine cover specific jobs.
Grade guide for panels and sheet on a 36" x 75" belt
| Grade | Use it for | Notes |
|---|---|---|
| Coarse (40–60) | Stripping old finish, light rust, coarse brushed aluminum | Lightest head setting; removes stock when loaded |
| Medium (80–120) | Deburring blanks, satin before paint or powder | Behind a 120 grit coated belt |
| Very Fine (180–240) | #4-style panel finish on stainless | Behind a 180–220 grit coated belt |
| Ultra Fine (320–400) | Fine satin, pre-buff, pre-anodize on aluminum | After Very Fine; refines only |
A non-woven belt refines the scratch from the coated belt ahead of it by about one step. Finish the coated head at 120 grit before Medium and at 180 or 220 grit before Very Fine or Ultra Fine; a coarser coated scratch will remain visible under the satin.
Which machines take a 36" x 75" surface conditioning belt?
- 36-inch wide belt sanders, graining machines and deburring machines specified for a 36" x 75" belt, including the Timesaver-type automated sanders the original listing for this belt described.
- 37-inch-class machines (Grizzly 37", SuperMax 37x2, Timesaver 37 style) only if the manual specifies a 36-inch belt width; most of these call for 37 inches, which we stock as a 37" x 75" version. A belt narrower than the drum leaves a strip of full-width sheet unfinished.
If your machine takes a 60-inch belt, use the 36" x 60" version. Length tolerance is about a quarter inch on most machines. The belt has no direction arrow; mount it either way, tension to the maker's setting, jog the machine and confirm the oscillation is centred. Set the non-woven head lighter than a coated belt of the same size; the web makes full contact at low pressure and tears if overloaded. Metal swarf goes to a metal-rated or wet collector, never a wood-dust system.
How to get the most out of it
- Set the scratch first. Take the panel to 120 grit for Medium or 180–220 grit for Very Fine and Ultra Fine with a coated belt. Our 36" x 75" aluminum oxide and zirconia belts and 36" x 75" metalworking belts are the same-size coated companions.
- Run light. Lower the head until the satin is continuous across the width and stop. Extra pressure tears web fibres, shortens belt life and can heat and oil-can a thin panel.
- Slow the feed, not the head, to deepen the grain. A slower conveyor gives the web more dwell without the damage that pressure causes.
- Feed every panel the same way. Long axis parallel to belt travel, show face up on the final pass, never rotated between passes.
- Protect the finished face. Apply protective film as panels come off the machine and stack them film to film; a finished panel dragged across a table picks up cross-scratches that cannot be blended out.
- Lubricate aluminum lightly. A mist or grease stick swipe stops aluminum smearing into the web. Stainless and steel run dry.
- No belt eraser, and hang it to store. Crepe rubber pulls web fibres. Hang the belt on a wide dowel out of sunlight; a folded belt creases and prints a line on the next panel.
Use it for / don't use it for
Use it for
- #4-style directional finishes on stainless appliance, elevator and architectural panels
- Brushed and satin finishes on aluminum sheet, plate and extrusions
- Stripping old paint, powder coat haze, light rust and oxidation without gouging
- Deburring laser-cut, plasma-cut and sheared blanks in stainless, steel and aluminum
- Blending a 120–220 grit coated scratch before paint, powder coat, anodizing or buffing
- Titanium, non-ferrous alloys, fiberglass and plastics that need a uniform matte face
Don't use it for
- Thickness calibration, weld grinding or any real stock removal
- Removing scratches coarser than the previous coated grit
- Mirror finishes; follow Ultra Fine with buffing wheels and compound
- Heavy head pressure or a shared wood-and-metal dust collector
Specifications
| Size | 36" wide x 75" long |
|---|---|
| Abrasive | Aluminum oxide grain in a non-woven nylon web |
| Backing | Reinforced scrim for automated wide belt machines |
| Grades offered | Coarse (40-60), Medium (80-120), Very Fine (180-240), Ultra Fine (320-400) grit equivalents |
| Colour code | Brown, maroon, blue, grey |
| Joint | Bi-directional; no direction arrow |
| Pack quantity | One belt per order |
| Wet or dry | Dry; light lubricant acceptable on aluminum |
| Materials | Stainless, aluminum, steel, titanium, non-ferrous alloys, fiberglass, plastics |
| Converted in | Anaheim, California |
| Custom sizes | Made to order in about 3 days |
Frequently asked questions
What is the difference between a 36" x 75" and a 37" x 75" belt, and which do I need?
One inch of width. A 36" x 75" belt fits machines specified for a 36-inch belt; most 37-inch-class single-head sanders are specified for 37 inches. Check the manual rather than the nameplate. Running a belt narrower than the drum leaves an unfinished strip on full-width sheet, and a wider one can foul the guarding or tracking sensor.
Can a surface conditioning belt strip old paint or powder coat from sheet?
The Coarse (40-60 Grit) belt strips paint, powder coat haze and oxidation from flat sheet without gouging the metal the way a coated belt does, because the web conforms and removes very little base material. Fully cured, thick powder coat is slow; a coated belt first, then Coarse or Medium to blend, is faster.
Which coated grit should come before Very Fine on aluminum?
Finish the coated belt at 180 or 220 grit, then run the Very Fine (180-240 Grit) belt with a light lubricant. Aluminum shows coated scratches more readily than stainless, so do not skip from 120 straight to the non-woven belt if the panel is a show face. For Ultra Fine, run Very Fine first.
How do I know when the belt is worn out?
The grain line gets faint at the same feed and pressure, the web feels thin and the scrim backing starts to show through in patches. Replace the belt at that point rather than adding head pressure; a worn 36" x 75" belt run hard tears and heats the panel instead of finishing it.
Why do I get cross-scratches on panels that looked perfect off the machine?
Handling. A finished satin panel slid across an outfeed table, stacked face to face without film, or wiped with a gritty rag picks up random scratches that read as defects against the straight grain. Film panels as they leave the machine, stack film to film, and handle them by the edges.
Is this one belt, and can I buy a set of grades at a quantity price?
Each order is a single 36" x 75" belt in the grade you choose. Orders over $200 ship free. For a set of grades or case quantities, call 714-646-3299 or email sales@maverickabrasives.com and we will quote quantity pricing.
