43" x 75" Sanding Belt, 2 PACK Cloth Closed Coat A/O / 60 Grit
Add 2 more to save 10%.
Available in stock (50000)
Check return eligibility and fees
Production deburring lines are where a non-woven wide belt earns its price. On a 37-inch machine running a 75-inch belt, one of these 37" x 75" surface conditioning belts follows the coated head and, in the same pass, rounds the burr off every laser-cut edge, evens out the coated scratch and leaves a straight satin grain that looks the same on the first part of the shift and the last.

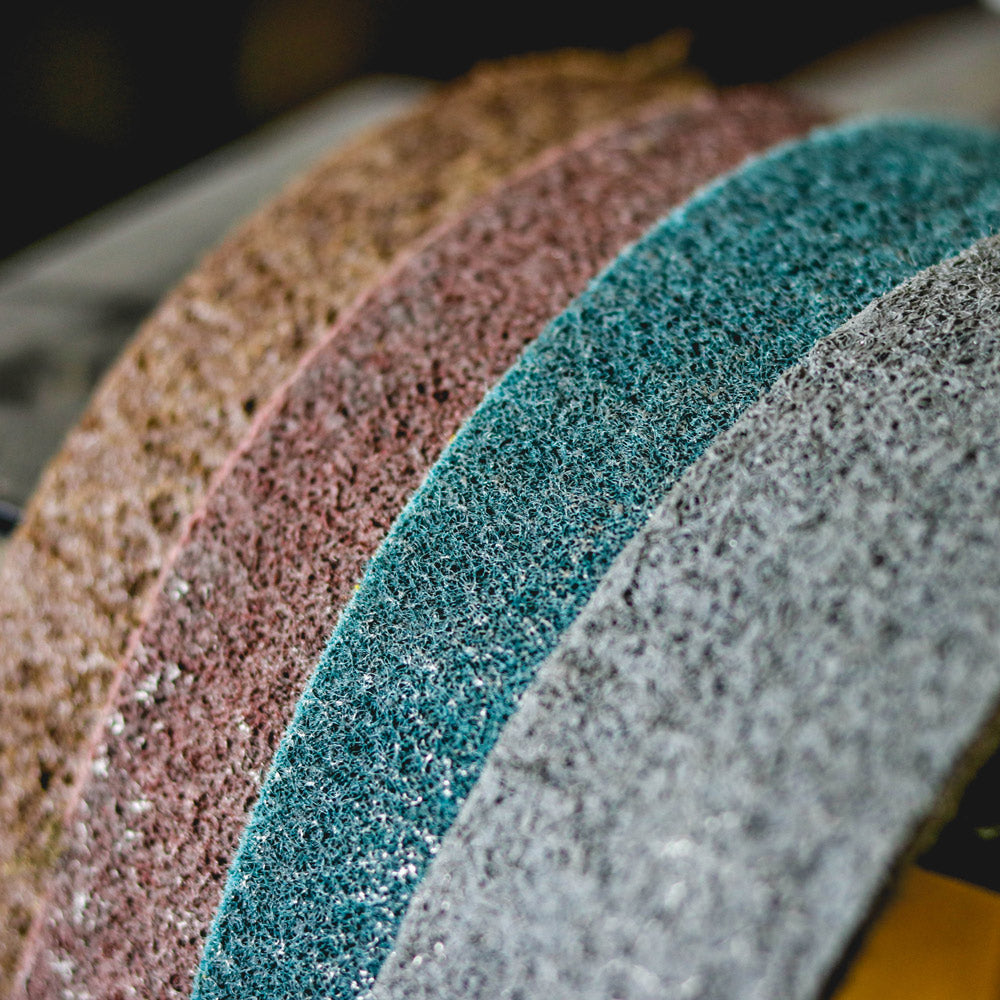

The belt is aluminum oxide grain held in a nylon web on a reinforced scrim backing that tolerates the tension and oscillation of an automated machine. We stock it in Coarse, Medium, Very Fine and Ultra Fine for stainless, aluminum, steel, titanium and other non-ferrous work, one belt per order.
On a two-head machine the coated belt sets the scratch and the non-woven belt sets the finish. Choose the non-woven grade by the finish the drawing calls for.
Most 37-inch deburring machines are set up with a Medium belt for coated work and a Very Fine belt for stainless cosmetic work, with Coarse and Ultra Fine kept on the rack for specific jobs.
| Grade | Use it for | Notes |
|---|---|---|
| Coarse (40–60) | Mill haze, light rust, heavy dross on plate | Lightest pressure; removes stock when loaded |
| Medium (80–120) | Production deburring, satin before coating | Behind a 120 grit coated belt |
| Very Fine (180–240) | #4-style grain on stainless sheet and blanks | Behind a 180–220 grit coated belt |
| Ultra Fine (320–400) | Fine satin, pre-buff, pre-anodize on aluminum | Follows Very Fine; refines only |
The rule is that the non-woven belt removes one step of scratch, not three. A blank that left the laser with a 60 grit coated pass needs 120 and 220 coated before Very Fine will give a clean #4-style grain.
Length tolerance on most wide belt machines is about a quarter inch, so a 75-inch belt fits a machine specified at 75. The belt has no direction arrow; mount it either way, tension to the maker's setting, jog the machine and confirm the oscillation is centred before feeding. Set the non-woven head lighter than the coated head; the web makes full contact with less pressure and tears if overloaded. Metal swarf goes to a metal-rated or wet collector, never a wood-dust system.
Use it for
Don't use it for
| Size | 37" wide x 75" long |
|---|---|
| Abrasive | Aluminum oxide grain in a non-woven nylon web |
| Backing | Reinforced scrim for automated wide belt machines |
| Grades offered | Coarse (40-60), Medium (80-120), Very Fine (180-240), Ultra Fine (320-400) grit equivalents |
| Colour code | Brown, maroon, blue, grey |
| Joint | Bi-directional; no direction arrow |
| Pack quantity | One belt per order |
| Wet or dry | Dry; light lubricant acceptable on aluminum |
| Materials | Stainless, aluminum, steel, titanium, non-ferrous alloys, fiberglass, plastics |
| Converted in | Anaheim, California |
| Custom sizes | Made to order in about 3 days |
A 37" x 75" belt fits 37-inch wide belt machines specified for a 75-inch belt, which includes Timesaver 37-class deburring and finishing machines. Confirm the length in your manual; most machines tolerate about a quarter inch. If your machine calls for 60 inches, order the 37" x 60" version instead.
It removes the haze and light scale left after pickling or after a coated pass, and it cleans light rust and oxidation. Heavy, intact mill scale on hot-rolled plate is a stock-removal job for a coated zirconia or ceramic belt; run that first, then the Coarse or Medium non-woven belt to blend and finish.
The last head. The coated belt on the first head sets the scratch and does the deburring work; the 37" x 75" non-woven belt on the final head blends that scratch, rolls the burr and lays the grain. Putting the non-woven belt first wastes it, because the coated belt behind it removes the finish it made.
Deburr and grain the flat blank with its long axis parallel to belt travel, then mark the grain direction on the protective film or with a paint pen before forming. When the formed parts are assembled, orient them so the grain runs the same way on every visible face. Regraining after bending is rarely possible on a wide belt.
Yes. Ultra Fine (320-400 Grit) run after Very Fine gives aluminum a fine, even satin with no visible scratch lines, which anodizes and clear coats evenly. Use a light lubricant so the aluminum does not smear into the web, and clean the parts thoroughly afterwards so no residue reaches the tank or the spray booth.
Each order is one 37" x 75" belt in the grade you choose. Many shops order a Medium and a Very Fine together and add Coarse or Ultra Fine as their work needs. Orders over $200 ship free. For quantity or case pricing on a grade set call 714-646-3299 or email sales@maverickabrasives.com.
