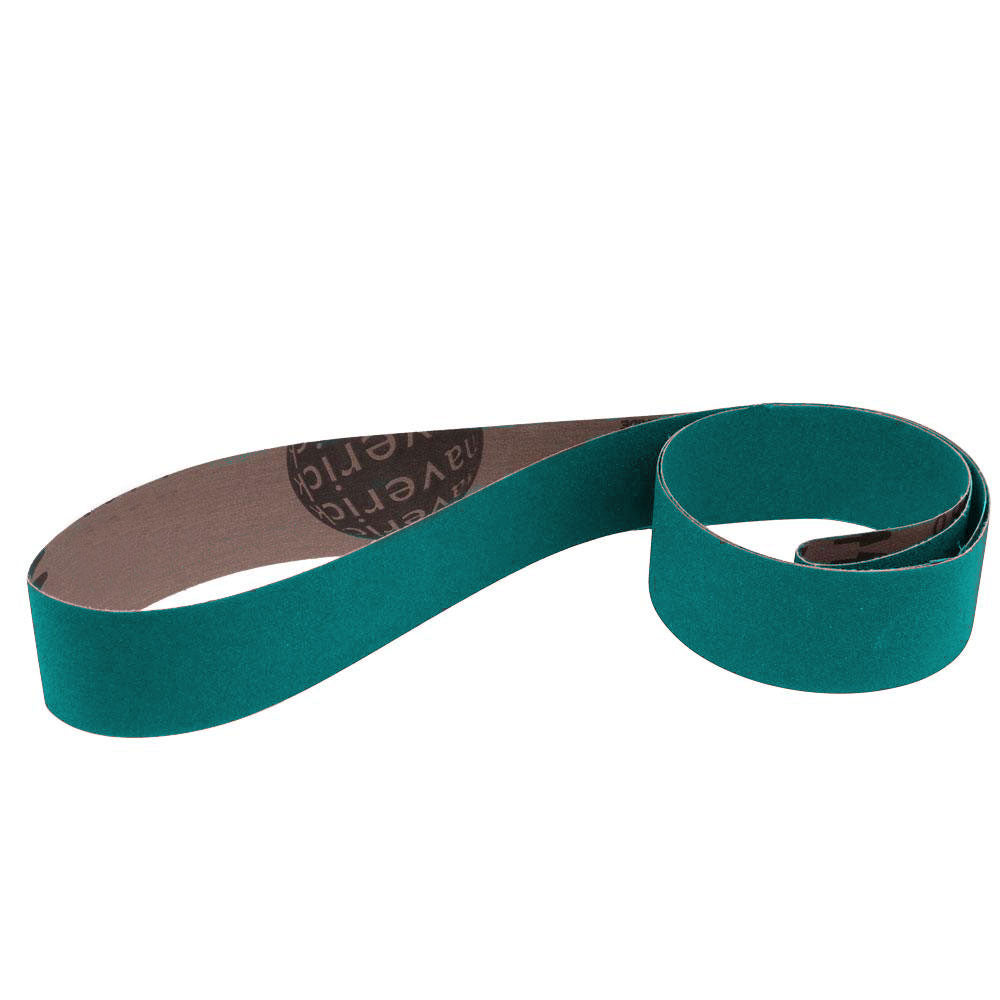

6" x 132" Metalworking Sanding Belts, 2 PACK
6" x 132" Metalworking Sanding Belts, 2 PACK
Available in stock (50000)
Thick plate edges and wide panels want the widest belt the machine will take: a 6" face keeps a heavy plate flat against the platen and lets a stroke-sander pad cover a panel in fewer passes. These 6" x 132" metalworking belts are cut for long-bed oscillating edge sanders and wide-platen stroke sanders built around this length, in zirconia for steel plate and iron, ceramic for stainless and hardened plate, Zirconia+ (Grinding Aid) for stainless and aluminum that heats and loads, and Cloth A/O for the 150–600 grit finishing belts.
We convert them in Anaheim, California on a Y-weight poly-cotton backing with heat-treated grain, so a 132" loop tracks straight across a 6" drum and takes pressure at the platen without stretching. Two belts of one grit per pack, so a shop can hold a grit pair without tying up money in a long belt it rarely changes.
- Zirconia, ceramic, Zirconia+ (Grinding Aid) and cloth aluminum oxide in a 6" x 132" long-machine size
- 6" face keeps thick plate flat on the platen and covers wide panels in fewer passes
- 132" loop spreads heat and wear: cooler steel, longer intervals between belt changes
- Y-weight poly-cotton cloth tracks true on long drum spans and outlasts typical paper or light-cloth belts
- 2 belts per pack, one grit each; poly-cotton backing runs wet or dry
- Converted in Anaheim, California; free shipping on orders over $200
Which grain should you choose for plate and panel work on a 6" x 132"?
Long edge sanders and stroke sanders apply moderate, steady pressure over a large area, so the grain choice is about the metal and how hard you can feed it into the platen.
- Zirconia: the workhorse for steel plate, flat bar, cast iron and general fabrication edges. Self-sharpens under moderate-to-heavy feed pressure; offered 24–120 grit. Squaring plasma-cut plate and flattening weld seams is zirconia work.
- Zirconia+ (Grinding Aid): zirconia with a grinding-aid top coat over the aid in the resin. Cooler and loading-resistant, it is the belt for stainless plate and sheet, aluminum plate, extrusions and titanium, and for any long pass where the edge starts to blue or the belt packs.
- Ceramic: the orange-red belt for stainless plate, hardened and tool steel and nickel alloys. It holds a constant cut rate for its life but only under firm pressure; feed thick plate hard into the platen and it repays you, feed it lightly and it glazes and heats the edge.

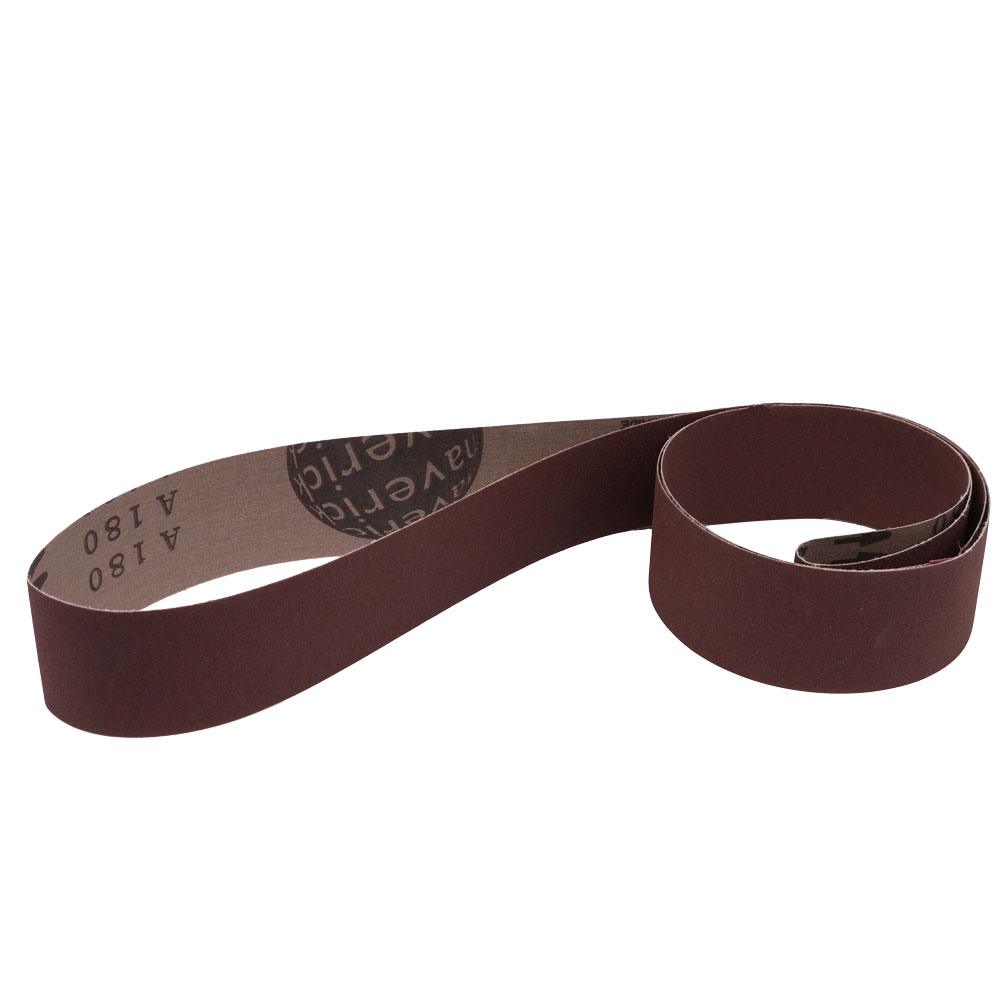

- Cloth A/O: heat-treated aluminum oxide, forgiving at light pressure, right for brass, bronze and soft aluminum and for every 150, 180, 220, 320, 400 and 600 grit belt in this listing. This is the grain for the finished edge or the final directional grain on a panel.
Above 120 grit, zirconia and ceramic leave a bright scratch rather than a finish; move to Cloth A/O and then a non-woven belt if a satin finish is required.
Grit guide for thick plate and wide panels on a 6" x 132"
| Grit | Steel and stainless | Aluminum |
|---|---|---|
| 24–36 | Squaring thick plasma-cut plate, heavy dross, weld leveling (zirconia or ceramic) | Thick castings only |
| 40–60 | Chamfering, removing saw and shear marks from plate edges | First belt on plate and extrusions, with grinding aid or grease stick |
| 80–120 | Deburring laser parts, blending, first graining pass on panels | Main working range on panels and sheet |
| 150–220 | Pre-finish edge, directional grain before paint or powder (Cloth A/O) | Finish before anodize or paint |
| 320–600 | Fine edge finish and pre-polish (Cloth A/O) | Pre-polish before buffing |
Step no more than one grade at a time. Thick mild steel plate goes 36 zirconia, 60, then 120 if the edge shows; a stainless panel goes 80 Zirconia+ (Grinding Aid), 120, then 180 and 220 Cloth A/O in one direction. Aluminum plate goes 80, 120, 220 Cloth A/O with the grease stick on the belt.
What machines does a 6" x 132" belt fit?
- Long-bed oscillating edge sanders built around a 6" x 132" belt, the larger industrial edge sanders with a long platen for full-length plate and panel edges.
- Wide-platen stroke sanders that list a 6" x 132" belt, where the operator presses a pad onto the moving belt over the workpiece.
- Shop-built and imported long-belt machines set up for this length.
Long-machine belt lengths vary widely, so measure an old belt or check the manual; we also stock 6" x 89" and other long lengths. Mounting: release tension, thread the belt over both drums with any printed arrow (check the inside) pointing in the direction of rotation, re-tension and jog the machine while adjusting tracking until the belt runs centred on both drums, then let it oscillate through a full cycle before feeding metal. If no arrow is printed the joint runs either way. Lengths we do not list are made to order in about 3 days.
How to get the most out of it
- Separate the dust system. Long edge and stroke sanders are almost always ducted to a wood-dust collector; steel sparks into that duct is a fire risk. Blank off the wood line and use a dedicated metal-rated or wet collector before grinding steel.
- Use the full 6" face. Keep thick plate flat on the table and against the whole platen width; tipping the plate onto a corner of the belt grooves it and rounds the edge.
- Feed firmly with zirconia and ceramic. Both grains stay sharp only while they micro-fracture under load; a shiny, quiet belt on plate is glazed. Ease off for Cloth A/O and let the belt cut.
- Keep the part moving along the belt so the long loop carries heat away and no single spot blues. On a stroke sander, keep the pad moving and grain in one direction only.
- Lubricate aluminum. Rub a grease stick on the running belt, use the grinding-aid or Cloth A/O belts and lighter pressure, and clean the belt with a crepe belt eraser as soon as it loads.
- Run wet where the machine allows. The poly-cotton backing tolerates coolant; a mist keeps stainless and titanium edges cool. Most long-bed machines run dry.
- Track and store long belts carefully. A 132" belt drifts more than a short one, so re-check tracking after the first minute of running. Store spares hanging on a wide peg or loosely rolled, dry and out of sunlight, and warm cold belts before running.
Use it for / don't use it for
Use it for
- Squaring, chamfering and deburring thick plasma-cut, laser-cut and sheared steel and stainless plate
- Directional graining on wide stainless panels and enclosures on a stroke sander
- Flattening and finishing aluminum plate, extrusions and sign panels with the grinding-aid and aluminum oxide belts
- Full-length edge finishing on long bars, plate and extrusions
- Brass and bronze plate edges
- Wide wood panels and doors with the Cloth A/O belts
Don't use it for
- Grinding steel into a shared wood-dust system
- Finishing with zirconia or ceramic above 120 grit; switch to Cloth A/O or non-woven
- Ceramic at light feed pressure; it glazes and heats the edge
- Machines that take a different belt length or width; measure first
Specifications
| Size | 6" x 132" |
|---|---|
| Abrasive grains | Ceramic, Zirconia, Zirconia+ (Grinding Aid), Cloth A/O (heat-treated aluminum oxide) |
| Backing | Y-weight poly-cotton cloth |
| Coat | Closed coat, resin bond |
| Joint | Taped cloth joint; check inside for a direction arrow |
| Grits offered | 24, 36, 40, 50, 60, 80, 100, 120, 150, 180, 220, 320, 400, 600 (range varies by grain; zirconia 24–120) |
| Pack quantity | 2 belts, one grain and grit per pack |
| Wet or dry | Both; poly-cotton backing tolerates coolant |
| Fits | Long-bed edge sanders and wide stroke sanders that take a 6" x 132" belt |
| Converted in | Anaheim, California |
| Custom sizes | Any width and length made to order in about 3 days |
Frequently asked questions
When should I choose a 6" x 132" belt over a 4" x 132"?
Choose the width your machine is built for first; they are not interchangeable. Where a machine accepts either, the 6" x 132" belt keeps thick plate flatter against the platen, covers a wide panel in fewer pad strokes on a stroke sander, and carries half again as much abrasive per belt, so it runs cooler and goes longer between changes.
What machines take a 6" x 132" belt?
Larger long-bed oscillating edge sanders and wide-platen stroke sanders built around this length, plus shop-built long-belt machines. Belt lengths on long machines vary by maker, so measure an old belt or check the manual before ordering. If yours is a different length, we convert custom sizes in Anaheim, California in about 3 days.
Which belt should I use to square thick plasma-cut steel plate?
Zirconia at 36 grit removes dross and squares the edge quickly on mild steel plate; follow with 60, then 120 if the edge will be visible or painted. Keep the plate flat on the table and against the full 6" platen, feed firmly so the zirconia keeps fracturing, and keep the plate moving along the belt so no spot overheats.
How do I grain a wide stainless panel on a stroke sander with this belt?
Use Zirconia+ (Grinding Aid) at 80 grit, then 120, then 180 and 220 Cloth A/O, pressing the pad in one direction only and overlapping strokes by half the pad width. The 6" belt covers the panel in fewer strokes, which helps consistency. Never stop with the pad down, and finish with a fine non-woven belt for a uniform satin.
Does ceramic make sense on a long edge sander?
For stainless plate, hardened steel and nickel alloys fed firmly into the platen, yes; ceramic holds a steady cut rate for its whole life on hard metals. For mild steel plate and general deburring, zirconia does the job for less. Whichever you choose, feed hard enough that the grain keeps fracturing; a light touch glazes ceramic and heats the edge.
Why does a long belt like this drift, and how do I stop it?
A 132" loop has more length to stretch and settle than a short belt, so it can wander during the first minute of running. Set tension per the manual, centre the tracking with the machine jogged, run it briefly off the work and re-check before feeding metal. Store the belt hanging or loosely rolled so it does not take a set that throws tracking.
How many belts are in a pack and is bulk pricing available?
Each pack contains 2 belts of one grain and one grit, so a shop can keep a coarse and a finishing grit on hand without over-buying a size it changes rarely. Orders over $200 ship free, and case quantities can be quoted by calling 714-646-3299 or emailing sales@maverickabrasives.com.
