54" x 144" Sanding Belt, 2 PACK

Fifty-four-inch heads with a 144-inch belt path are found on heavy calibrating and finishing lines: hardwood flooring plants, countertop and butcher-block producers, and multi-head machines that take a full-width glue-up and bring it to finish thickness in one pass through. We convert this size in closed-coat cloth aluminum oxide for surfacing and finishing heads and in zirconia for the calibrating head, in grits from 36 through 400.

Each pack holds two belts of one grain and grit. The choice between the two grains on a line like this is not about wood versus metal so much as about which head the belt is going on: zirconia where the machine is removing real stock under pressure, aluminum oxide where it is refining the surface. Converted in Anaheim, California.

• Zirconia for calibrating heads under heavy load; closed-coat aluminum oxide for surfacing and finishing heads
• 36 through 400 grit covers every head on a multi-head 54-inch line
• 144-inch belt path: more grain per belt and longer cooling between contacts
• Poly-cotton cloth backing holds tension and tracks on long industrial belt paths
• 2-pack per grit and grain; case pricing and standing orders quoted
• Converted in Anaheim, California; custom lengths for 54-inch machines in about 3 days

Zirconia or aluminum oxide: which belt goes on which head of a 54-inch line?

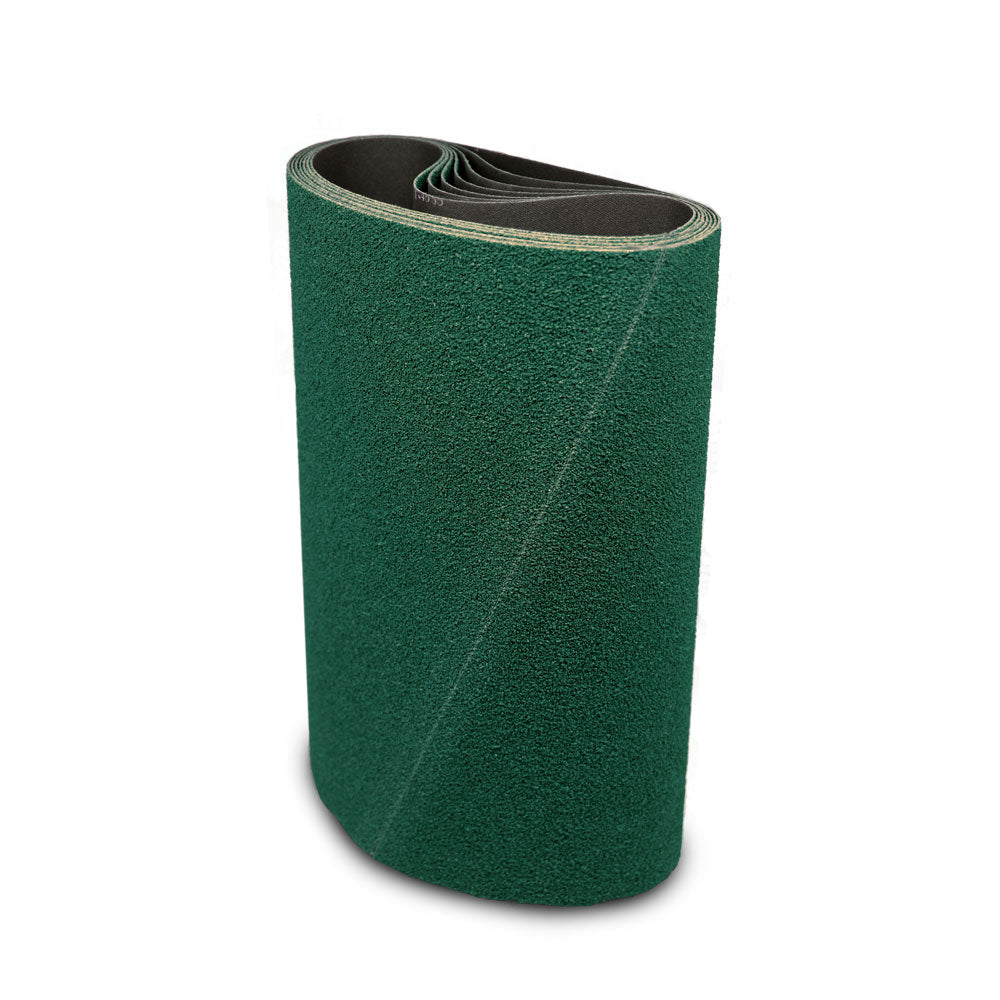

• Zirconia: the calibrating-head belt. Its grain fractures under load to expose fresh cutting edges, so at 36 to 60 grit it holds a steady cut through hardwood glue lines, knots, end grain in butcher block, and dense species such as hickory, oak and maple that round over aluminum oxide quickly. It is also the belt for steel plate on lines that run metal. Zirconia needs pressure to keep fracturing; use it at 36 through 120 and switch to aluminum oxide above that.

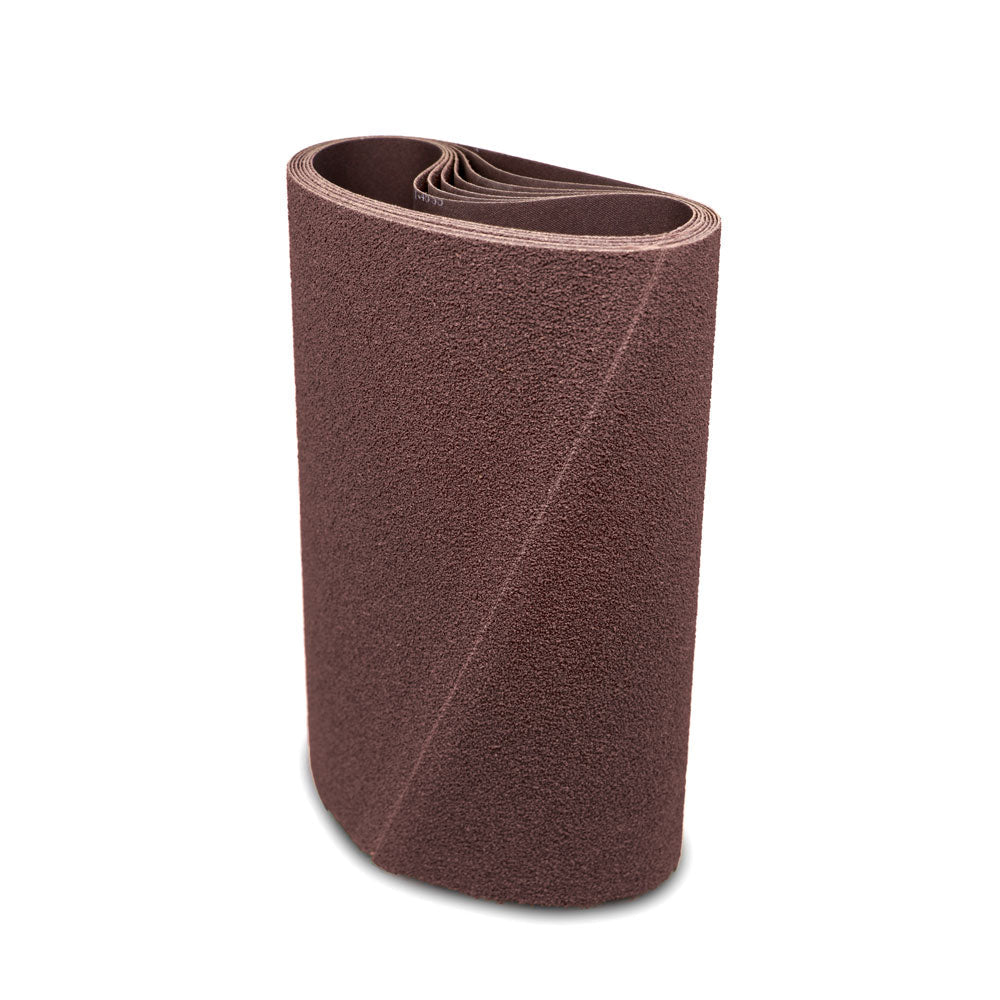

• Cloth Closed Coat A/O: aluminum oxide on poly-cotton cloth, closed coat for full grain coverage. The belt for intermediate and finishing heads on all wood, and for every head on softwood, MDF and plywood, where the material does not push back hard enough for zirconia to self-sharpen. It gives the uniform scratch that stain and finish need. Buy it at 80 through 220 for most lines and at 320 or 400 for a skim pass on veneer and clear-coat work.

A typical flooring or countertop line runs 40 or 60 zirconia on the first head, then 100 and 150 aluminum oxide, then 180 or 220 aluminum oxide on the platen head. Softwood and MDF lines run aluminum oxide on every head.

Grit guide for calibrating and finishing on a 54-inch line

What machines take a 54" x 144" belt?

• 54-inch industrial wide belt sanders in the Timesaver 54 class and comparable multi-head calibrating and finishing lines whose size plate reads 54 x 144. The old page called these "timesaver machines", which the trade uses for wide belt sanders in general.
• 54-inch machines with other belt paths take our 54" x 142", 54" x 126" or 54" x 103" belts. Two inches is well outside the quarter inch or so of tolerance a tension roller provides, so a 142 and a 144 are not interchangeable; read the plate on each head.

Mounting a belt this size is a two-person job: retract the tension roller fully, carry the belt on open without letting it fold, tension, and set tracking with the oscillation running so the belt swings evenly between the limit sensors. Check the inside of the belt for a direction arrow before mounting and run it that way if one is printed. For a width or length not on the site, we convert custom belts in about 3 days.

How to get the most out of it

1. Load the zirconia head properly. Zirconia stays sharp only when it is pressed hard enough to fracture. Set the calibrating head for a real cut, 1/64 to 1/32 inch per pass on hardwood, and keep feed speed up. Run it too light and it glazes and burns exactly like a dull aluminum oxide belt.
2. Run the aluminum oxide heads light. Finishing belts want shallow passes and a fast feed; the platen does the flattening, not pressure.
3. Never skip more than one grit between heads. 60 to 100 to 150 to 220 works. 60 to 150 leaves calibrating scratches under a surface that looks finished until stain hits it.
4. Keep extraction strong on every head. Loading is the number one killer of wide belts, and 54-inch heads move a great deal of dust. Check gates and hoses, not just the main collector.
5. Clean aluminum oxide belts on the machine. A crepe-rubber belt eraser held lightly against the running belt pulls resin and dust out of the grain. Zirconia belts that have stopped cutting usually need more pressure, not cleaning.
6. Watch for bluing on metal. If steel comes off the zirconia head blue, the belt is dull or the pressure is too light; change it or load it, do not slow the feed.
7. Stagger narrow work across the 54-inch width so belts wear evenly instead of in a centre track.
8. Store hanging on a rack, away from humidity and sunlight, and let cold belts come to shop temperature before mounting. A 144-inch belt left folded takes a set you cannot track out.

Our blog covers the two most common trouble calls on lines like this: why wide sanding belts break and chatter marks and finish problems on wood.

Use it for / don't use it for

Use it for

• Hardwood flooring, butcher block and countertop calibrating at 36 to 60 grit (zirconia)
• Glued-up panels, doors and tabletops up to 54 inches wide
• Intermediate and finishing passes on all wood species (aluminum oxide)
• Softwood, MDF and plywood on every head (aluminum oxide)
• Steel plate and aluminum sheet on lines set up for metal (zirconia coarse, aluminum oxide fine)

Don't use it for

• Zirconia on finishing heads or above 120 grit; it glazes instead of self-sharpening
• Zirconia on softwood or MDF calibrating; the material does not load it enough
• Wet sanding; these are dry-use belts
• Running a belt with a lifted joint, crease or edge tear
• Machines whose belt path is 142 inches or any length other than 144
