54" x 126" Sanding Belt, 2 PACK

Most 54-inch two-head wide belt sanders in cabinet shops spend their lives on MDF, melamine-core and veneered panels, with the occasional run of solid-wood face frames. That mix is what these 54" x 126" belts on X-weight poly-cotton cloth are converted for: closed-coat aluminum oxide for panel surfacing and finishing, and zirconia when the first head has to take real stock off hardwood.

Both grains come in 36 through 400 grit, two belts to a pack, so the first head and the second head can be matched from one order. The 126-inch length is the shortest of our 54-inch belts; confirm it against your machine plate before ordering. Converted in Anaheim, California, with other lengths made to order.

• Closed-coat aluminum oxide leaves a uniform scratch on MDF and veneer that primes and stains evenly
• Zirconia at 36–120 grit holds its cut on hardwood face frames and glue lines
• X-weight poly-cotton cloth tracks true on 54-inch drums and platens
• Anti-static backing releases fine MDF dust into the collector instead of packing the grain
• Full 36–400 range covers first head, second head and sealer flatting
• Two belts per pack; converted in Anaheim, California

Which grain belongs on each head of a two-head 54-inch sander?

On a two-head machine the first head calibrates and the second head finishes. The grain choice follows that split.

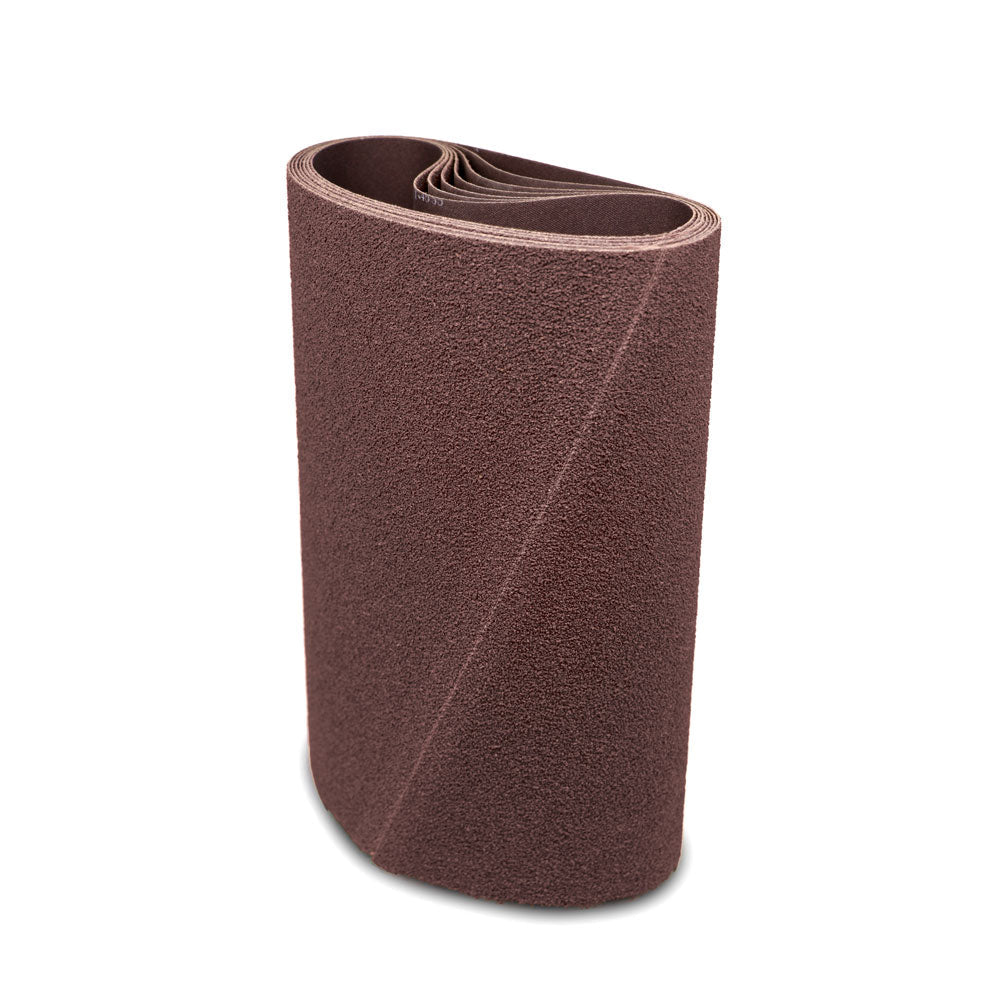

• Cloth Closed Coat A/O: aluminum oxide with the cloth fully covered in grain. It is the belt for MDF, particleboard, plywood, veneer and softer solid wood on both heads, and the only grain we recommend above 120 grit. Closed coat gives more cutting points than open coat, so it cuts faster and lasts longer on everything except very soft, pitchy softwood. It is also the standard for aluminum and composite panels.

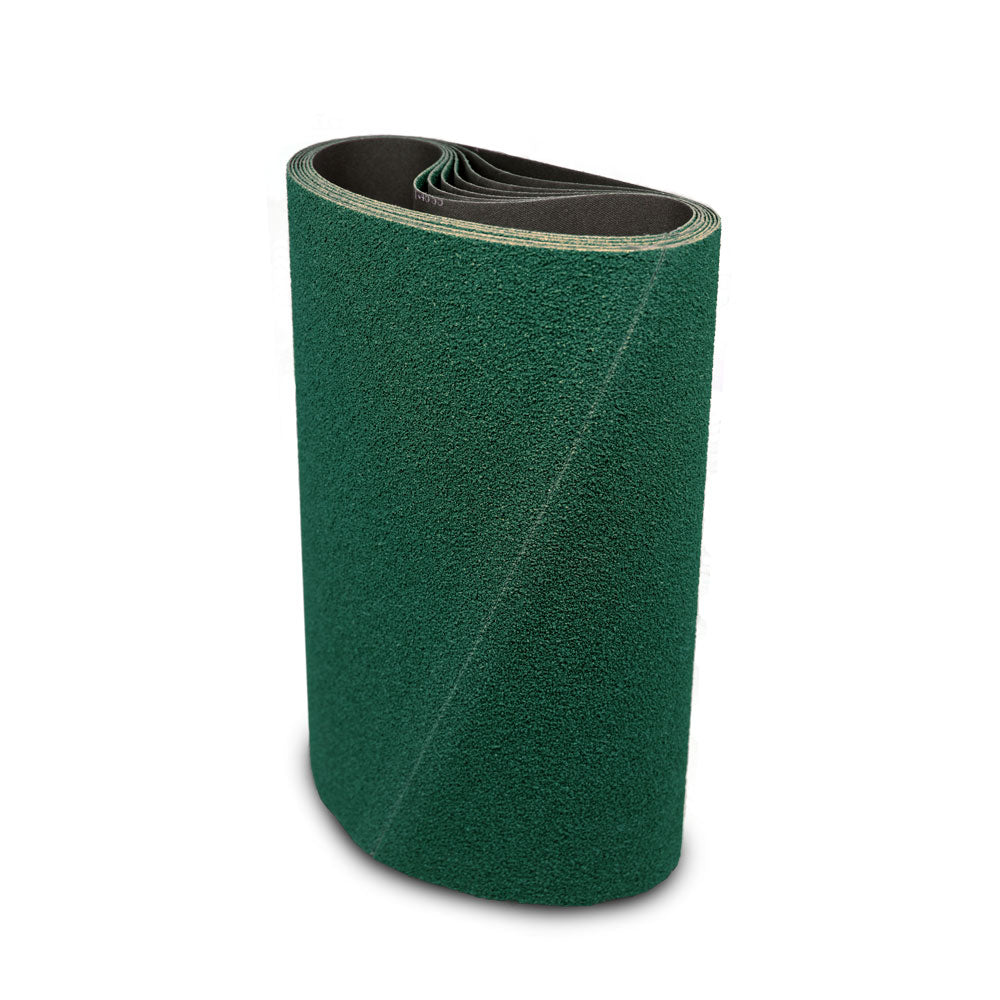

• Zirconia: for the first head at 36, 40, 60 or 80 grit when the stock is hard maple, oak, hickory or glued-up panels. The grain fractures under load and keeps a sharp edge, so the head holds its removal rate across a full shift instead of tailing off. Zirconia needs pressure to work; on a light-pressure finishing head it glazes and heats the panel, so keep it on the calibrating head.

Open coat is not offered in this size, and in our experience it is rarely missed. Closed coat plus good extraction handles nearly every panel a cabinet shop runs, and metal always takes closed coat.

Grit guide for MDF, veneer and face frames

Pair the heads no more than one grade apart: 80/120, 100/150 or 120/180. A first head at 60 feeding a second at 150 leaves calibrating scratches under the finish.

What machines take a 54" x 126" belt?

• 54-inch two-head wide belt sanders in cabinet, closet and store-fixture shops whose plate reads 54" x 126".
• Single-head 54-inch calibrating sanders with the same loop length, used ahead of a finishing machine.
• Wide belt sanders set up for aluminum or steel sheet, using closed-coat aluminum oxide or zirconia with a metal-rated collector.

Confirm both numbers against the machine plate. 126 inches is a distinct length from our 142 and 144 inch belts and from the 53" x 110-1/4" belt used on metric-built machines; most sanders accept only about a quarter inch of length variation. Our belts are joined to run in either direction, so mount them without worrying about an arrow, but check the joint tape for lifting first. Any 54-inch length not listed can be converted as a custom belt in about 3 days.

How to get the most out of it

1. Centre the oscillation before feeding stock. A belt that drifts toward one edge will wear unevenly and eventually run off the drum.
2. Set the first head for the grain. Zirconia wants a real depth of cut, up to 1/32" on hardwood; aluminum oxide on MDF should take 1/64" or less per pass to avoid heat and fuzzing.
3. Keep feed speed up. A slow feed burns maple and cherry and glazes MDF edges. If the finish is burning, speed up and reduce depth rather than moving to a coarser grit.
4. Use the platen for the second head. The platen spreads pressure and removes drum marks at 120 grit and finer.
5. Extraction first, then everything else. MDF dust is fine and loads grain quickly. Run the collector at full airflow and clean aluminum oxide belts with a crepe rubber belt eraser while the machine runs.
6. Hang belts to store them. Off the floor, out of sunlight and humidity, and warmed to room temperature before mounting.

For persistent breakage read our guide to why wide sanding belts break; for ripple and chatter marks see the woodworking chatter Q&A.

Use it for / don't use it for

Use it for

• MDF, particleboard and plywood cabinet parts before primer or paint
• Veneered panels and solid-wood face frames before stain
• Calibrating glued-up hardwood panels and drawer fronts
• Sealer and primer flatting at 320–400 on a light-pressure platen
• Aluminum and composite sheet on machines set up for metal

Don't use it for

• Machines that call for 142, 144 or any other length
• Zirconia above 120 grit where a finish matters; switch to aluminum oxide
• Wet sanding on machines not designed for it
• One collector shared between wood dust and steel dust
