54" x 103" Metalworking Sanding Belts

Timesaver-type 54" wide belt machines were built to grind and finish metal all day, and they are only as good as the belt on the drum. This 54" x 103" metalworking belt is sold per belt in ceramic, zirconia or cloth A/O so a fabrication or finishing shop can stock exactly the grits its line uses, from 24 grit scale removal to a 600 grit pre-polish on stainless sheet.

Ceramic is the pick for stainless, hardened and heat-resistant alloys; zirconia handles carbon steel plate and weld seams at a lower belt cost; cloth A/O covers aluminum and every finishing grit from 150 up. All three are cloth-backed belts that can run wet or dry, converted in Anaheim, California.

• Sold per belt: stock a full grit ladder without buying pairs you do not need
• Ceramic, zirconia and cloth A/O grain options, 24 through 600 grit
• Y-weight poly-cotton backing on ceramic and zirconia for wet or dry running
• Sized for Timesaver-type 54" wide belt grinding and finishing machines
• Coarse metal grains for scale and weld; A/O fine grits for a linear graining finish
• Converted in Anaheim, California; custom widths and lengths in about 3 days

Which grain should you load on a 54" Timesaver-type machine?

The machine supplies pressure and feed; the grain decides how that pressure turns into cut and heat. Choose by the metal and by where the belt sits in your sequence.

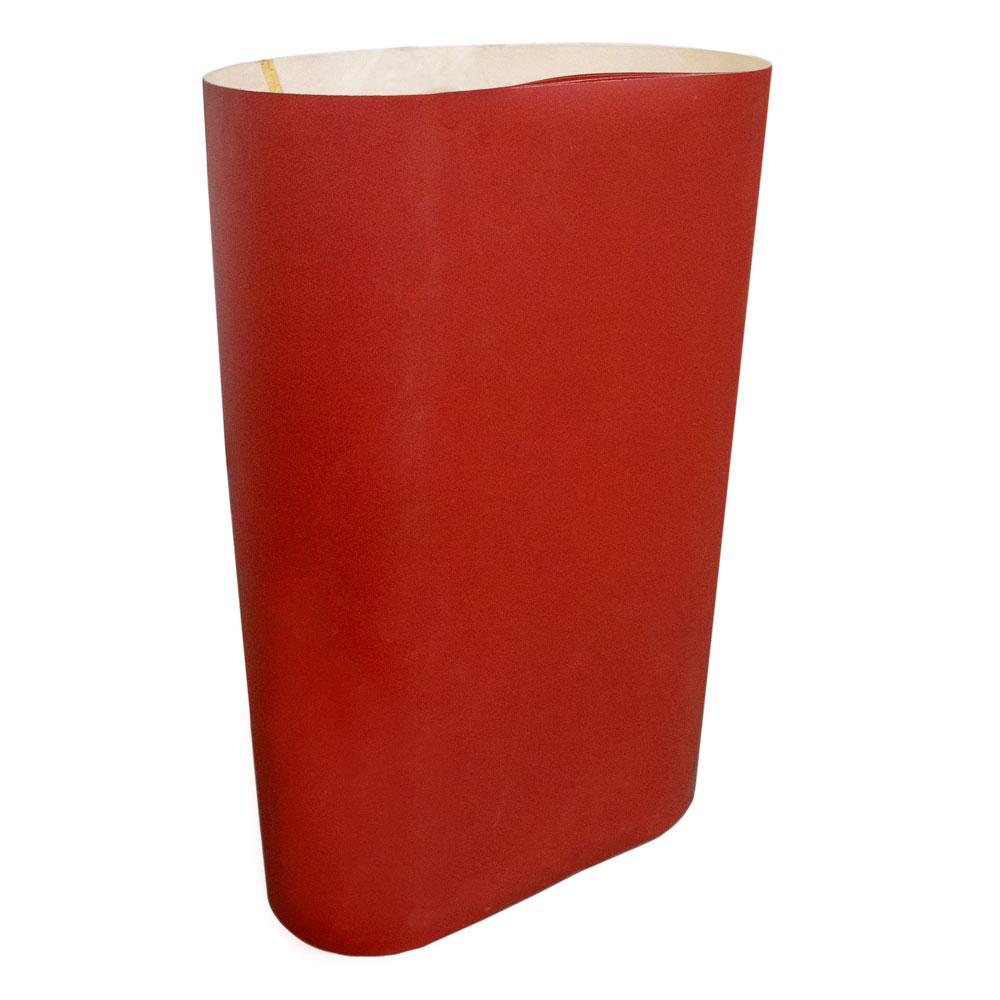

• Ceramic: the production choice for stainless steel, hardened and heat-treated steel, titanium and nickel alloys. Its orange-red grain fractures into new cutting points under load and holds a near-constant removal rate, so part-to-part stock removal stays consistent across a shift. Use it in the 24–120 grit stages where heat and removal are highest.

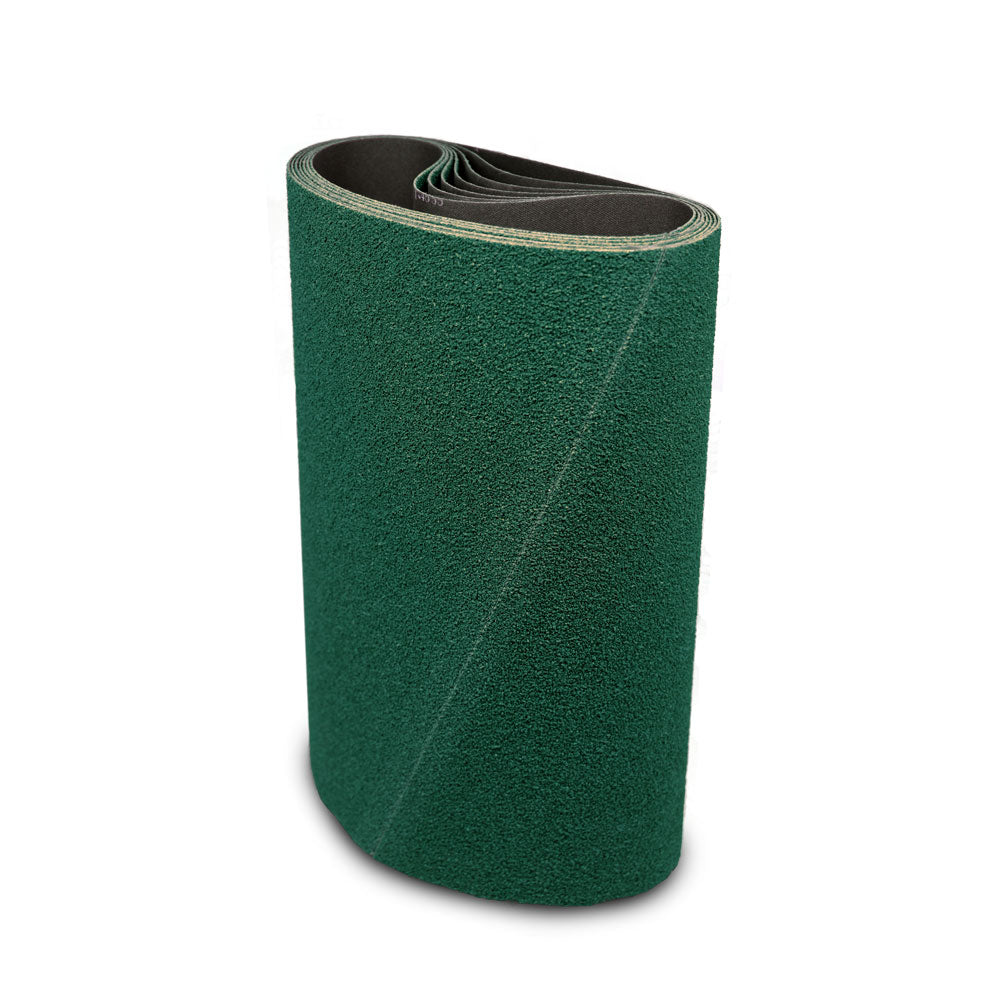

• Zirconia: green or blue grain for mild and carbon steel, weld reinforcement, plate descaling and heavy levelling. It costs less than ceramic and self-sharpens as long as it is worked hard. Stocked in the coarse and medium grits, 24 through 120, which is the band where zirconia earns its keep.

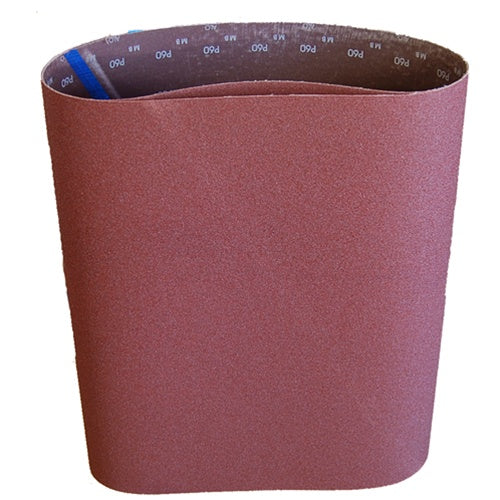

• Cloth A/O: brown aluminum oxide on poly-cotton cloth. The right grain for aluminum, brass and bronze at every grit, and the only grain we offer from 150 through 600 on this size. It gives the cleanest, most uniform scratch for a graining or pre-polish finish because it cuts predictably at light pressure where the tougher grains would glaze.

A common three-belt line-up on stainless sheet is ceramic 60 to deburr and level, ceramic 120 to blend, then cloth A/O 180 or 220 to set the directional grain. On aluminum extrusions, cloth A/O 80 followed by 150 with a grease stick on the belt is usually all it takes.

Grit guide for a metal finishing line

Never skip more than one grit step on a part that will be seen. Each belt only removes the scratch left by the belt before it; a 60 grit line under a 220 finish will show through polishing and coating alike.

What machines take a 54" x 103" belt?

• Timesaver-type 54" wide belt grinders and finishers, single- and multi-head, running stainless and steel sheet, plate and laser-cut parts. "Timesaver" is used in most shops as the generic name for this class of machine as well as the brand.
• 52–54" industrial deburring and graining lines where a coated abrasive head is followed by brush or non-woven heads.
• Wide belt calibrating machines in metal and composite shops that use a contact drum for stock removal and a platen for finish grits.

Confirm 54" width and 103" length against the machine manual; if your machine calls for a different length in this width, we make it. Check the inside of the belt for a direction arrow before mounting, set tracking so the oscillation is centred, and run a dedicated metal-rated dust collector or wet collection. Never put steel or aluminum dust into a collector that also handles wood dust.

How to get the most out of it

1. Load the coarse grains. Ceramic and zirconia stay sharp only when the pass is heavy enough to fracture the grain. If the belt goes shiny and the part shows heat tint, increase the removal depth rather than adding another light pass.
2. Match belt speed to the metal. Run steel at the machine's higher belt speed. Drop to the lower speed for aluminum and dress the running belt with a grease stick so the chips do not pack into the coat.
3. Feed steadily. Slow feed and dwell are what blue stainless and warp thin sheet. Two moderate passes beat one slow heavy one.
4. Run wet when the machine allows it. The Y-weight poly-cotton backing on the ceramic and zirconia belts and the poly-cotton on the cloth A/O tolerate coolant, which controls heat tint on stainless and loading on aluminum.
5. Clean the belt on the machine. A crepe-rubber belt eraser held lightly against a running cloth A/O belt pulls out packed aluminum and extends the finish grits noticeably.
6. Store belts hanging and dry. A 54" belt left folded or on a concrete floor takes a set that shows up as a tracking problem and a chatter mark on the part.

Use it for / don't use it for

Use it for

• Deburring and edge-breaking laser, plasma, waterjet and punched stainless and steel blanks
• Removing mill scale, weld reinforcement and heat tint from plate
• Linear graining and brushed finishes on stainless sheet, panels and enclosures
• Levelling and finishing aluminum plate, extrusions and castings
• Pre-polish stages before airway buffing wheels

Don't use it for

• Wood, plywood or MDF; our 54" x 103" wood belts are set up for that
• Fine finishing with zirconia or ceramic; above 120 grit switch to cloth A/O or a surface conditioning belt
• Any machine whose collector also handles wood dust
• Light hand-fed machines that cannot load ceramic properly
