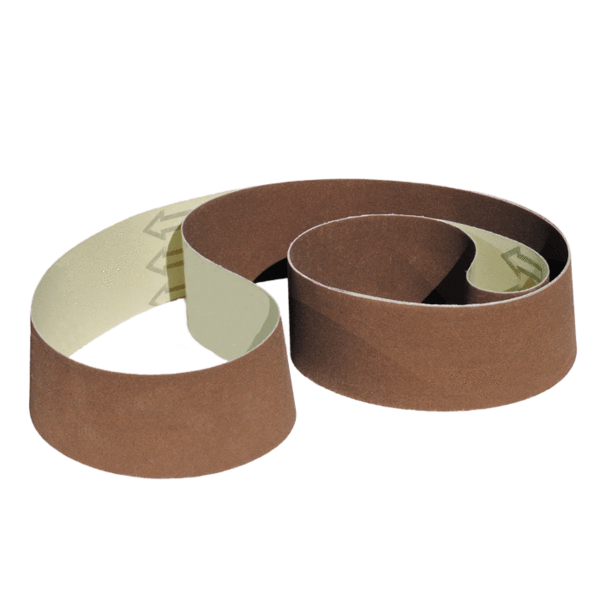

6" x 80" Sanding Belts, 2 PACK
6" x 80" Sanding Belts, 2 PACK
Available in stock (49979)
The 6" x 80" belt is the size on the compact benchtop and floor-standing edge sanders that cabinet shops use to true door edges, face frames and drawer fronts. We make ours specifically for that job: heat-treated aluminum oxide on an X-weight poly-cotton backing, with a resin bond chosen for edge wear, because an edge sander works the belt hardest along the line where the panel edge rides.
The machines we see this size ordered for most often are the Grizzly G1140 benchtop sander, the Shop Fox W1688 and the JET OES-80 edge sander, along with the Grizzly G0512 and Baileigh edge sanders that take a 6" x 80" belt. Aluminum oxide is the stock grain; grits run 36 through 320 and belts ship two to a pack. Zirconia and ceramic in this size are available on request.
- Sized for Grizzly G1140, Shop Fox W1688, JET OES-80 and other 6 x 80 edge sanders
- Heat-treated aluminum oxide on X-weight poly-cotton cloth built for edge wear
- 36 through 320 grit: shaping through final pass before finish
- Two belts per pack so a fresh grit is always ready on the machine
- Converted in Anaheim, California; free shipping on orders over $200
- Zirconia or ceramic in 6" x 80" quoted on request; custom lengths in about 3 days
Which 6" x 80" belt should you choose?
This size is stocked in one grain, so the choice is grit and, for special cases, a custom grain.
- Aluminum Oxide (stock): the correct grain for woodworking edge sanders. It cuts hardwood, softwood, plywood and MDF cleanly at the light-to-moderate pressure an edge sander applies, gives the most consistent scratch pattern before stain or clear coat, and is the longest-lived grain on wood. The heat-treated grain is tougher than plain brown aluminum oxide, and the X-weight poly-cotton cloth keeps the belt flat against the platen and resists the edge wear that fringes cheaper belts.
- Coarse grits, 36 to 60: truing rough-sawn edges, removing saw marks, shaping curves on the end drum.
- Medium grits, 80 to 120: the working range for squaring door and drawer edges and removing the coarse scratch.
- Fine grits, 150 to 320: pre-finish and final pass. Most shops stop at 180 or 220 before stain.
- Zirconia or ceramic: not stocked in 6" x 80", but we can convert them for shops running an edge sander on steel or heavy hardwood. Email or call for pricing.
Not every grit is held in equal depth; the variant selector shows what is in stock.
Grit guide for edge sanding cabinet parts
| Grit | Use it for | Notes |
|---|---|---|
| 36 | Rough-sawn edges, heavy shaping, glue squeeze-out | Light passes; easy to overshoot a line |
| 60 | Saw and jointer marks, squaring edges to a line | Common first grit on solid wood |
| 80–100 | General edge truing, plywood and MDF edges | Where most edge sanding is done |
| 120 | Removing the 80 scratch, pre-finish on paint-grade work | Start here on veneered plywood |
| 150–180 | Pre-finish before stain | Light pressure, keep the part moving |
| 220 | Final pass before stain or clear | Do not go finer for stain |
| 320 | Fine finishing, plastics, solid surface, pre-paint | Burnishes wood if used before stain |
Which edge sanders take a 6" x 80" belt?
Confirm the belt size in your manual before ordering. The 6" x 80" machines this belt is ordered for most often:
- Grizzly G1140 6" x 80" benchtop edge sander
- Shop Fox W1688 edge sander
- JET OES-80 edge sander
- Grizzly G0512 edge sander
- Baileigh Industrial edge sanders listed for a 6" x 80" belt (the 8120 and ES-9138 were listed on the previous version of this page)
- Other benchtop and floor-standing oscillating edge sanders whose manual specifies a 6" x 80" belt

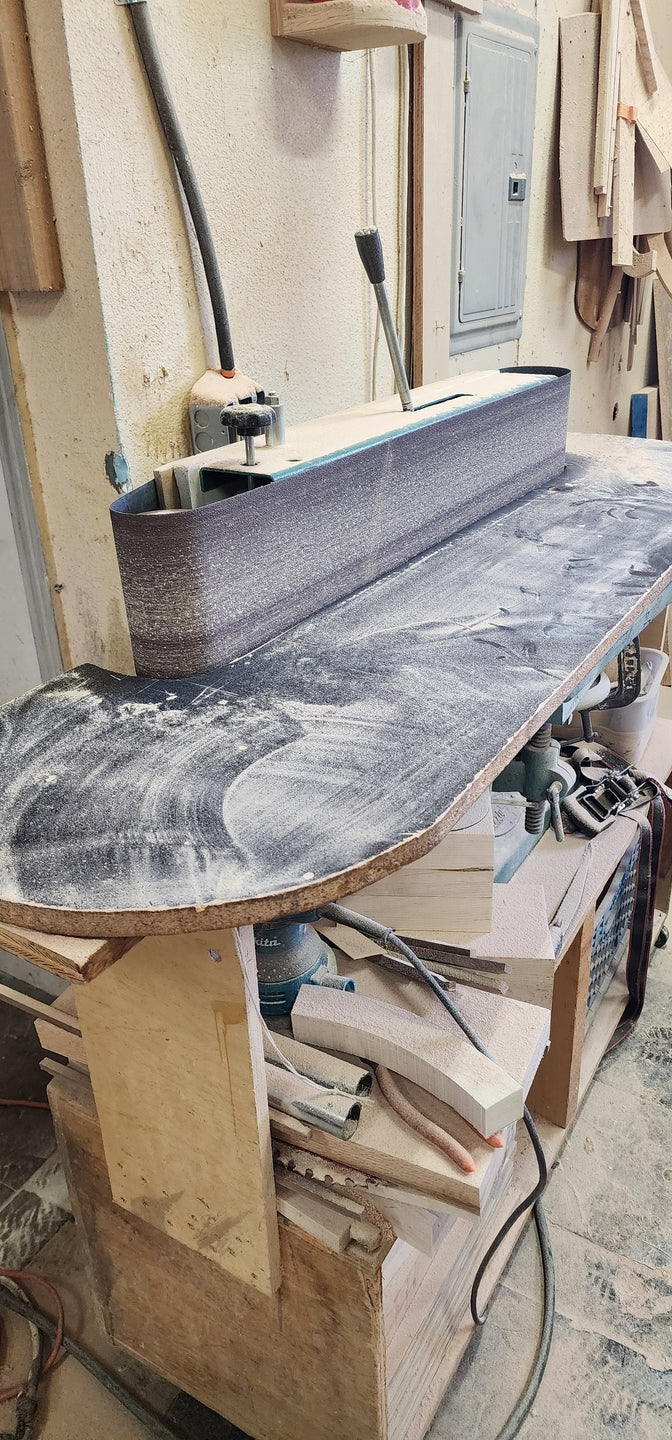

Mounting: release the tension lever, slide the belt over both drums with any direction arrow on the inside pointing the way the belt travels, re-tension, then turn the belt by hand and adjust tracking so it runs centred on the platen and clear of the table. Check the inside of the belt for a direction arrow before mounting. If your machine calls for a slightly different 6" length, we make it to order.
How to get the most out of it
- Keep the table square to the platen. Check it with a square after every belt change; a fraction of a degree shows up as a tapered door edge.
- Feed the part against the belt direction along the platen with steady, light pressure, and keep it moving. Stopping to "fix a spot" dishes the edge.
- Use the oscillation. If your machine oscillates, keep it on; it spreads wear across the belt height and stops a groove forming at the table line.
- Use the end drum for inside and outside curves, with the part rolled steadily across the drum. Never sand a curve on the platen.
- Watch for burning on maple and cherry. A dull belt, a slow feed or too much pressure burns these first. Change the belt or lighten up.
- Clean the belt with a crepe rubber belt eraser when resin or paint loads the grain, and keep dust extraction connected; a loaded belt is the usual reason a 6" x 80" seems to wear out early.
- Store belts hanging or loosely coiled in their box away from humidity, and let a cold belt come to room temperature before running it.
Use it for / don't use it for
Use it for
- Truing and squaring cabinet door, face frame and drawer front edges
- Removing saw and jointer marks from solid wood and plywood edges
- Shaping and smoothing curved parts on the end drum
- Fitting inset doors and drawers to an opening a few thousandths at a time
- Edge work on MDF, plastics and solid surface
Don't use it for
- Steel or heavy metal grinding; ask us for a zirconia or ceramic belt in this size instead
- Sanding faces of wide panels; the platen is for edges
- Grits finer than 220 before stain; the surface burnishes and takes stain unevenly
- Running a belt against its direction arrow or with a lifted joint
Specifications
| Size | 6" wide x 80" long |
|---|---|
| Abrasive grain | Heat-treated aluminum oxide (zirconia or ceramic on request) |
| Backing | X-weight poly-cotton cloth |
| Coat | Closed coat, resin bond |
| Joint | Check the inside of the belt for a direction arrow before mounting |
| Grits offered | 36, 60, 80, 100, 120, 150, 180, 220, 320 |
| Pack quantity | 2 belts |
| Wet or dry | Dry on woodworking edge sanders; cloth tolerates moisture |
| Converted in | Anaheim, California |
| Custom sizes | Any width and length made to order in about 3 days |
Frequently asked questions
Will these fit my Grizzly G1140 or Shop Fox W1688 edge sander?
Both machines are ordered against this 6" x 80" belt more than any others, along with the JET OES-80 and Grizzly G0512. Confirm the belt size printed in your manual, mount the belt with any direction arrow on the inside pointing the way it travels, and track it centred on the platen before you start.
Why aluminum oxide and not zirconia for an edge sander?
Edge sanders apply light-to-moderate pressure to wood, and that is where aluminum oxide does its best work: it cuts cleanly, leaves the most even scratch before finish and lasts longest on wood. Zirconia needs heavy pressure to self-sharpen and can tear or burn wood edges. If you run steel on your edge sander, ask us for zirconia or ceramic in this size.
What grit should I keep on the edge sander for cabinet doors?
Most shops keep 80 or 100 grit on the machine for squaring and fitting, and switch to 150 or 180 for the last pass before stain. Use 36 to 60 only for rough-sawn edges and heavy shaping. Two belts per pack lets you keep a coarse and a fine belt ready without a long changeover.
Why is the belt burning the edge of maple doors?
Maple and cherry burn before other species when the belt is dull or loaded, the feed is too slow, or the part is pressed too hard against the platen. Fit a fresh belt, clean a loaded one with a belt eraser, keep the door moving along the platen, and let the grain cut rather than forcing it.
Can I get zirconia or ceramic in 6" x 80"?
Yes, as a custom conversion. This size is stocked in aluminum oxide because it is a woodworking edge sander belt, but we convert zirconia and ceramic in 6" x 80" for shops that run steel or heavy hardwood on the same machine. Email sales@maverickabrasives.com or call 714-646-3299 for pricing.
How long does a 6" x 80" belt last on an edge sander?
It depends on species, grit and how clean the belt is kept, so we do not quote a number. The X-weight cloth and heat-treated grain are built to outlast typical paper or light-cloth belts, and keeping dust extraction on, cleaning with a belt eraser and using the machine's oscillation are what extend life most in practice.
What are the shipping and return terms?
Orders over $200 ship free, and unused belts in their original packaging can be returned within 30 days. Belts are sold two to a pack of one grit. For case quantities or a different 6" length, call 714-646-3299 or email sales@maverickabrasives.com and we will quote it; custom sizes are made in about 3 days.
