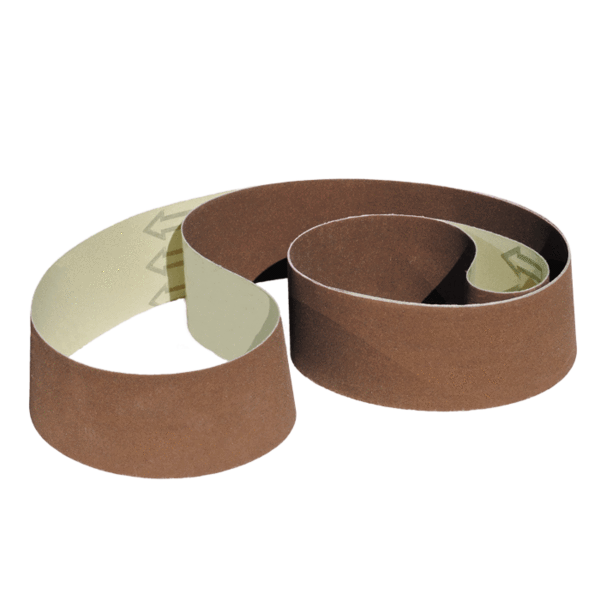

6" x 271" Sanding Belts, 2 PACK
6" x 271" Sanding Belts, 2 PACK
Available in stock (50000)
Stroke sanders in cabinet and furniture shops run belts this long, and 6" x 271" is the size on the SCMI MiniMax L55 stroke sander among others. The operator presses a pad down onto the moving belt to sand tabletops, doors, drawer fronts and glued-up panels, so the belt has to be flat, consistent and tough enough to take pad pressure for hours. We make these in our Anaheim, California facility from aluminum oxide on X-weight poly-cotton cloth, the grain and backing that suit wood on a stroke sander.
Aluminum oxide is the only grain stocked in this size because it is what stroke sanding on wood calls for: it cuts cleanly at the light, moving pressure of a pad and does not tear or burn the way zirconia can. Grits run from 40 to 320, two belts to a pack.
- Stroke sander length: fits the SCMI MiniMax L55 and other machines that take a 6" x 271" belt
- Aluminum oxide on X-weight poly-cotton cloth, the standard combination for wood on a stroke sander
- Heavy-duty cloth backing tolerates pad pressure and can be run wet or dry
- 40–320 grit: flattening glue-ups through finish sanding before stain
- 2-pack: one on the machine, one spare
- Made in Anaheim, California; free shipping over $200
Which 6" x 271" belt should you choose?
This size is stocked in aluminum oxide only, so the choice is grit. Aluminum oxide is the right grain for wood on a stroke sander, and a workable low-cost belt for aluminum, mild steel and stainless at light pressure.
- 40 grit: flattening rough glue-ups, levelling misaligned boards and removing heavy planer marks. Keep the pad moving; this grit removes material quickly.
- 60 grit: the first grit on most solid-wood panels and tops, and for taking out glue lines and snipe.
- 80 grit: general surfacing, removing the 60 scratch, and the starting grit on clean, planed panels.
- 120 and 150 grit: pre-finish on doors and tops, and the finish grit for paint-grade work. Also where to start on veneered panels.
- 180 and 220 grit: the last grit before stain, oil or clear coat. Stop at 220 for stain; going finer burnishes the wood and blocks absorption.
- 320 grit: fine finishing on end grain, dense exotics and pieces that will get a clear film finish only, and for light pre-polish work on aluminum.
If your machine also does metal fabrication and you need zirconia in this size for steel or aluminum, we make it to order on a Y-weight polyester backing; call 714-646-3299 or use the custom belt page.
Grit guide for stroke sanding wood
| Grit | Use it for | Notes |
|---|---|---|
| 40 | Flattening glue-ups, heavy removal | Light pad pressure, constant motion |
| 60 | Levelling panels, glue lines, snipe | First grit on solid wood |
| 80 | General surfacing | Everyday stroke sander grit |
| 120–150 | Pre-finish; veneer starting grit | Finish grit for paint-grade |
| 180–220 | Final before stain or clear | Stop at 220 for stain |
| 320 | Fine finishing, end grain, pre-polish | Very light pressure |
Never skip more than one grit. A stroke sander leaves a long, straight scratch, and any grit you jump over shows as lines running the length of the panel once finish goes on.
What machines take a 6" x 271" belt?
- SCMI MiniMax L55 stroke sander, one of the machines that uses this belt size.
- Other horizontal stroke sanders whose drum spacing calls for a 6" wide, 271" long belt.
- Long-bed edge sanders and metal fabrication machines built to the same belt path.
Fitment notes: stroke sander belt lengths are set by drum spacing and tensioner travel, and several nearby sizes exist (264", 274"), so confirm the length in your manual or measure an old belt around the outside before ordering. Most machines tolerate about 1/4" of length variation. Look on the inside of the belt for a direction arrow before mounting; if there is none, the joint runs in either direction. Tension, jog the drums and centre the belt before running it up to speed.
How to get the most out of it
- Keep the pad moving. The belt runs continuously and the pad controls the cut. Sweep in overlapping passes along the grain and never let the pad rest, or you will sand a hollow into the panel.
- Use light pressure. Leaning on the pad heats the panel and burns cherry and maple, and it stretches the belt. If the cut is too slow, drop one grit rather than pushing harder.
- Move the table so the whole panel passes under the pad and ease off before the far edge so you do not round it over.
- Shift the pad across the belt width through the job so the belt wears evenly instead of tracking a groove down the centre.
- Clean the belt with a crepe belt eraser at low pressure as soon as pitch or finish starts to load the grain. A cleaned aluminum oxide belt cuts nearly like new; loading ends more belts than wear does.
- Keep dust extraction strong. Fine dust between the belt and the panel burnishes the surface and hides the scratch you are trying to remove.
- Store the spare hanging over a large-radius peg or loosely coiled, away from humidity and sunlight. A twenty-two-foot cloth belt folded in a corner takes a set that thumps on the drums.
Use it for / don't use it for
Use it for
- Tabletops, cabinet doors, drawer fronts and glued-up panels
- Flattening solid-wood glue-ups before finish sanding
- Plywood and MDF panels (120 grit or finer on veneer faces)
- Light deburring and finishing of aluminum and mild steel where the machine is set up for it
Don't use it for
- Heavy stock removal on steel; that job wants zirconia and a metal-rated dust system
- Coarse grits on veneer, which sand through in a pass or two
- Sanding finer than 220 on wood that will be stained
- Machines built for a different belt length
Specifications
| Size | 6" x 271" |
|---|---|
| Abrasive grain | Aluminum oxide |
| Backing | X-weight poly-cotton cloth |
| Coat | Closed coat |
| Joint | Cloth belt joint; check the inside for a direction arrow |
| Grits offered | 40, 60, 80, 120, 150, 180, 220, 320 |
| Pack quantity | 2 belts, one grit per pack |
| Wet or dry | Both (machine permitting) |
| Machines | SCMI MiniMax L55 stroke sander and other machines taking a 6" x 271" belt |
| Made in | Anaheim, California |
| Custom sizes | Any 6" wide length, and zirconia in this size, made to order in about 3 days |
Frequently asked questions
Does this 6" x 271" belt fit the SCMI MiniMax L55 stroke sander?
Yes, the SCMI MiniMax L55 is one of the stroke sanders that uses a 6" x 271" belt. Since stroke sander lengths vary by model and tensioner setting, confirm the size in your manual or measure an old belt around the outside before ordering; if your machine lists a different length, we stock several 6" lengths and make custom sizes.
Why is only aluminum oxide offered in this size?
Because a 6" x 271" belt is almost always bought for stroke sanding wood, and aluminum oxide is the grain for that: it cuts cleanly at light pad pressure and does not tear or burn the way zirconia can. If you need zirconia in this length for steel or aluminum, we make it to order on Y-weight polyester in about 3 days.
What grit sequence should I run on a solid-wood tabletop?
Start at 60 grit to level the glue-up, or 80 if the top came off the planer clean and flat. Step to 120, then 150 or 180, and stop at 220 before stain or clear coat. Keep the pad moving on every pass; the final grit only removes the scratch from the grit before it.
Can I use this belt on veneered plywood doors?
Yes, carefully. Start no coarser than 120 grit, use very light pad pressure and keep the pad moving; a stroke sander will cut through face veneer in a pass or two at 60 or 80. Finish at 150 or 180 for stain and 220 for clear. Watch the edges, where veneer is thinnest.
Is the backing cloth, and can it run wet?
It is X-weight poly-cotton cloth, a heavy polyester and cotton blend that resists tearing, holds flat under the pad and can be run wet or dry. Most woodworking stroke sanders are dry machines with dust collection, so in practice the wet capability matters only on machines built for coolant.
How many belts are in the pack, and is bulk pricing available?
Each pack contains two 6" x 271" belts of one grit. Shops that keep several grits on hand can call 714-646-3299 or email sales@maverickabrasives.com for bulk or case pricing. Orders over $200 ship free.
