54" x 243" Sanding Belt, 2 PACK
54" x 243" Sanding Belt, 2 PACK
Available in stock (50000)
A 243-inch belt is over twenty feet of cloth, and it only exists because long-bed panel sanders need that much length to keep the belt cool and carry the dust away. These 54" x 243" closed-coat belts on X-weight poly-cotton cloth are converted for those machines: 54-inch panel calibrating and finishing lines in plywood, veneer, MDF and solid-wood panel plants. Aluminum oxide handles surfacing and finishing; zirconia takes the calibrating head at coarse grits.
Sold two to a pack in one grain and one grit, from 36 through 400. Every belt in this size is made to order in Anaheim, California, so the joint, the length and the grit are checked against your order before it ships. We can also convert any other length or width for a 54-inch machine.
- X-weight poly-cotton cloth built to carry tension across a 243-inch loop without stretching or cupping
- Closed-coat aluminum oxide for panel surfacing and finishing, 36 through 400 grit
- Zirconia for calibrating heads: self-sharpening grain that keeps cutting through glue lines and hardwood
- Anti-static construction that resists loading on MDF and veneer dust
- Two belts per pack so a long-bed line has a spare on the shelf for every grit
- Converted to order in Anaheim, California; other 54-inch lengths available
Which grain should you run on a 54" x 243" panel sander?
Two materials are offered in this size, and the choice follows the head, not the machine.

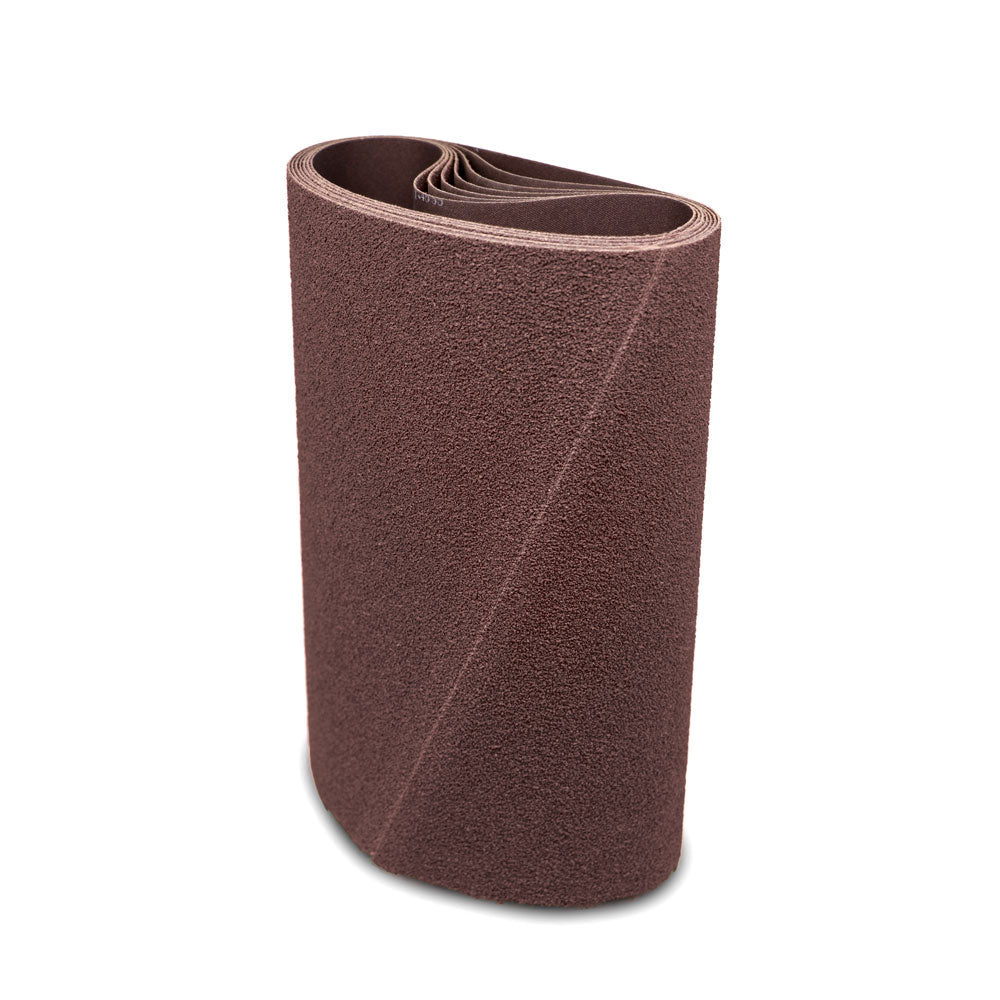

- Cloth Closed Coat A/O (aluminum oxide): the standard belt for plywood, veneer, MDF, particleboard and solid-wood panels. The grain is fully packed across the cloth, so it gives the most cutting points per square inch and the most consistent scratch. Use it on every head from 80 grit up, and on the calibrating head too if you are running mostly MDF or softwood. It is also the grain to run on aluminum and composites.

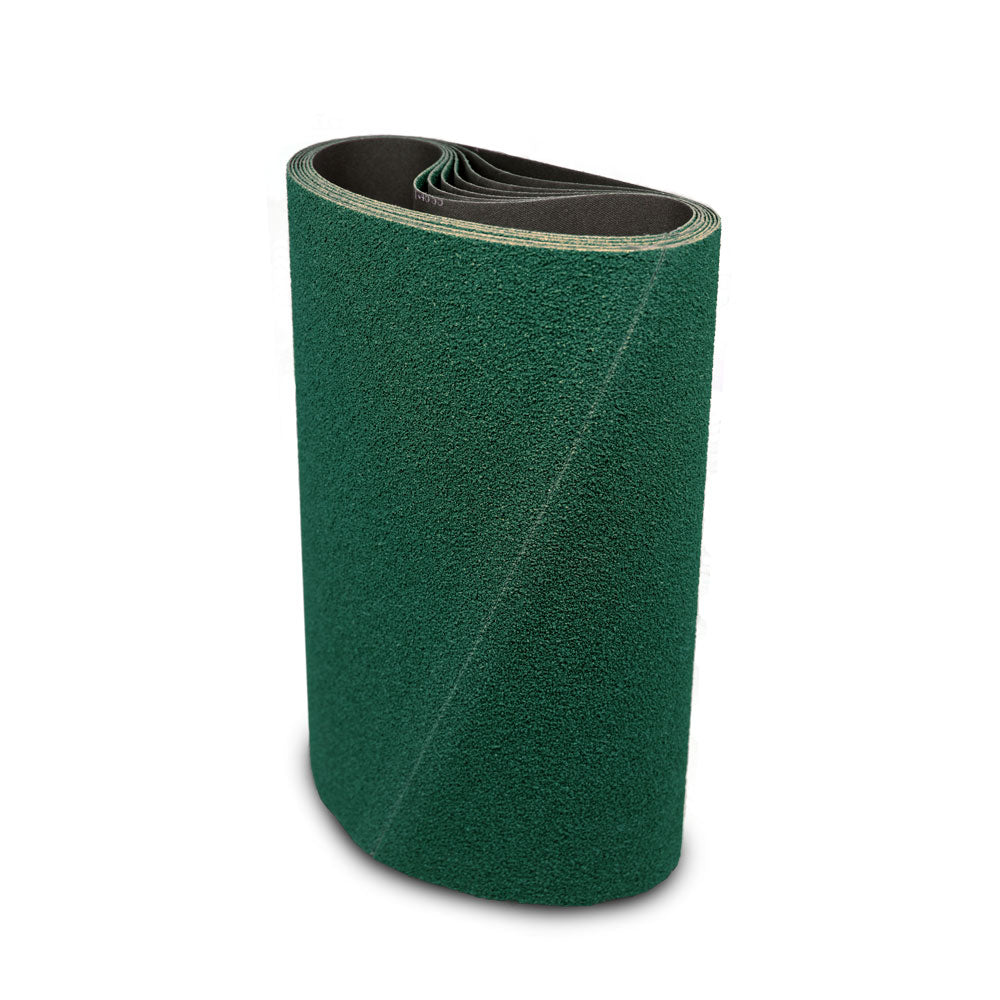

- Zirconia: for the calibrating head at 36, 40, 60 or 80 grit on hardwood, glued-up panels and anything with a lot of stock to remove. Zirconia fractures under pressure and exposes fresh edges, so it holds its cut rate through a shift of dense stock where aluminum oxide slowly rounds over. It only earns its price where the head is set for a real depth of cut; on a finishing head it glazes.
Open coat is not offered in this size. Our original page put it plainly: unless you are sanding a very soft, resinous softwood, closed coat is the right answer, and it is the only answer for metal. Closed coat carries roughly a quarter more grain than an open-coat belt of the same grit, which is where the extra life comes from.
Grit guide for panel calibrating and finishing
| Grit | Use it for | Notes |
|---|---|---|
| 36–40 | Calibrating rough or glued-up panels | Zirconia; 1/64"–1/32" per pass |
| 60 | Thicknessing, glue-line removal | Zirconia or AO |
| 80–100 | General surfacing after calibration | AO; removes the 60 scratch |
| 120–150 | Pre-finish on veneer and MDF | AO on the platen head |
| 180–220 | Final pass before stain or clear coat | Stop at 220 for stain |
| 320–400 | Sealer and primer denibbing, lacquer flatting | Light platen pressure only |
Never skip more than one grade between heads. A 36 to 120 jump leaves calibrating scratches under a shiny surface that show up the moment stain hits the panel.
What machines take a 54" x 243" belt?
- Long-bed 54-inch wide belt calibrating sanders used in plywood, veneer and MDF panel plants, where the belt loop runs over a long frame to dissipate heat.
- Multi-head 54-inch finishing lines in door, furniture and cabinet-component plants whose plates call for a 243-inch length.
- Industrial wide belt sanders set up for metal plate and sheet, running closed-coat aluminum oxide or zirconia with a dedicated metal-rated collector.
Match both numbers on your machine plate. Width tolerance is small on a 54-inch head, and most machines accept only about a quarter inch of length either way; a 243-inch belt will not tension on a machine built for a shorter loop. Our belts run bi-directionally, so there is no arrow to honour, but look at the joint before mounting and reject any belt whose tape has lifted. If your plate reads a length we do not stock, we convert custom wide belts in about 3 days.
How to get the most out of it
- Let a cold belt warm up. A 243-inch loop that has sat in a cold warehouse is stiff; give it an hour at shop temperature before it goes on the machine so the joint flexes instead of cracking.
- Centre the oscillation. Track the belt so the oscillation swings evenly around the centre of the drum. A belt that hunts to one edge on a loop this long is the first sign of a stretched belt or a worn tracking sensor.
- Take light passes. 1/64" to 1/32" on hardwood at 36 to 60 grit, less as grit gets finer. Overloading a calibrating head heats the belt along its whole length and shortens its life more than any other habit.
- Keep the feed up. Burning on cherry, maple and MDF edges comes from slow feed and dwell, not from the belt. Speed up before you reach for a coarser grit.
- Drum for calibrating, platen for finishing. Run 36 to 80 on the contact drum, 120 and above on the platen with light pressure.
- Run strong extraction. Loading is what kills wide belts. If the belt browns or the finish starts to shine, clean it with a crepe belt eraser at low pressure while it runs.
- Store belts hanging. Never on the floor and never folded; a 243-inch belt with a crease in it will thump on every revolution.
If belts are breaking, read our guide to why wide sanding belts break. For chatter and finish defects on wood, see our woodworking chatter Q&A.
Use it for / don't use it for
Use it for
- Calibrating and finishing plywood, veneer-faced panels, MDF and particleboard
- Thicknessing glued-up solid-wood panels, doors and tabletops
- Denibbing sealer and primer at 320–400 on a light-pressure platen head
- Flattening aluminum, steel plate and composite sheet on a metal-rated line
Don't use it for
- Machines whose plate calls for a different length; 243 inches is not a substitute for 240 or 250
- Running zirconia at 150 grit and above expecting a finish; use aluminum oxide there
- Wet sanding on a machine not designed for it
- Mixing wood and steel dust in one collector
Specifications
| Size | 54" x 243" |
|---|---|
| Abrasive grain | Closed-coat aluminum oxide or zirconia alumina |
| Backing | X-weight poly-cotton cloth, anti-static |
| Coat | Closed |
| Joint | Bi-directional |
| Grits offered | 36, 40, 60, 80, 100, 120, 150, 180, 220, 320, 400 |
| Pack quantity | 2 belts, one grain and grit per pack |
| Machine type | Long-bed 54-inch wide belt calibrating and finishing sanders |
| Converted in | Anaheim, California |
| Custom sizes | Any width or length, about 3 days |
Frequently asked questions
Why are 54" x 243" belts so much longer than a standard wide belt?
A 54" x 243" belt fits long-bed panel sanders whose frame runs the belt over a much longer loop than a compact machine. The extra length gives the cloth time to cool and shed dust between passes over the drum, which matters on a calibrating head that runs all shift on MDF or veneer panels.
Which grain goes on the calibrating head and which on the finishing heads?
Put zirconia at 36 to 80 grit on the calibrating head, where the depth of cut gives the grain the load it needs to self-sharpen. Run closed-coat aluminum oxide on the surfacing and finishing heads from 80 through 400; it cuts cleanly at light platen pressure and leaves an even scratch for stain.
How should a 243-inch belt be stored and handled?
Hang each belt on a wide bar or store it loosely rolled in its box, off the floor and away from humidity and sunlight. Never fold it. Let a belt that has been in a cold store reach shop temperature before mounting, and carry it with two people so the joint is never kinked.
Can I run a 243-inch belt on a machine that lists 240 or 250 inches?
No. Most wide belt sanders only accept about a quarter inch of length variation, and three or seven inches is far outside the tensioner's travel. Order the length on your machine plate. If it is not one we list, we convert custom 54-inch belts to that exact length in about 3 days.
Why is my aluminum oxide belt burning MDF edges?
Burning on a wide belt comes from a slow feed, too deep a pass, a loaded belt or weak extraction, in that order. Increase feed speed, reduce the depth of cut, clean the belt with a crepe eraser while it runs, and check the collector. A dull belt that has stopped cutting should be replaced, not pushed harder.
How many belts come in a pack and can I get case pricing?
Each pack contains two 54" x 243" belts of one grain and grit. Panel plants usually order a set of grits by the case; call 714-646-3299 or email sales@maverickabrasives.com for case and recurring-order pricing. Orders over $200 ship free, and unused belts in original packaging can be returned within 30 days.
