53" x 103" Metalworking Sanding Belts, 2 PACK

A 53" wide belt line running stainless sheet, steel plate, aluminum extrusions or laser-cut blanks needs a belt built for metal, not the wood belt that happens to be the same size. These 53" x 103" metalworking belts put ceramic, zirconia or cloth aluminum oxide grain on heavy poly-cotton cloth so the belt takes the pressure a 52–54" industrial deburring or graining machine puts into it without stretching or shedding.

Choose ceramic for stainless and hardened steel, zirconia for carbon steel and weld knockdown, and cloth A/O for aluminum and every finishing grit above 120. Sold as a 2-pack so you can keep a grit pair on the machine, and converted in Anaheim, California.

• Three metal grains on one page: ceramic, zirconia and cloth A/O, 24 through 600 grit
• Ceramic and zirconia on Y-weight poly-cotton cloth that runs wet or dry
• Coarse grits cut welds and scale; A/O fine grits leave a uniform grain line
• Sized for 52–54" class wide belt finishing, deburring and graining machines
• 2-pack keeps a coarse and a finish belt on hand between deliveries
• Converted in Anaheim, California; free shipping on orders over $200

Which material should you run on a 53" x 103" metal line?

Match the grain to the metal and to the amount of pressure the machine can deliver. On a wide belt machine set up for metal, pressure is rarely the problem, so the decision comes down to what you are cutting.

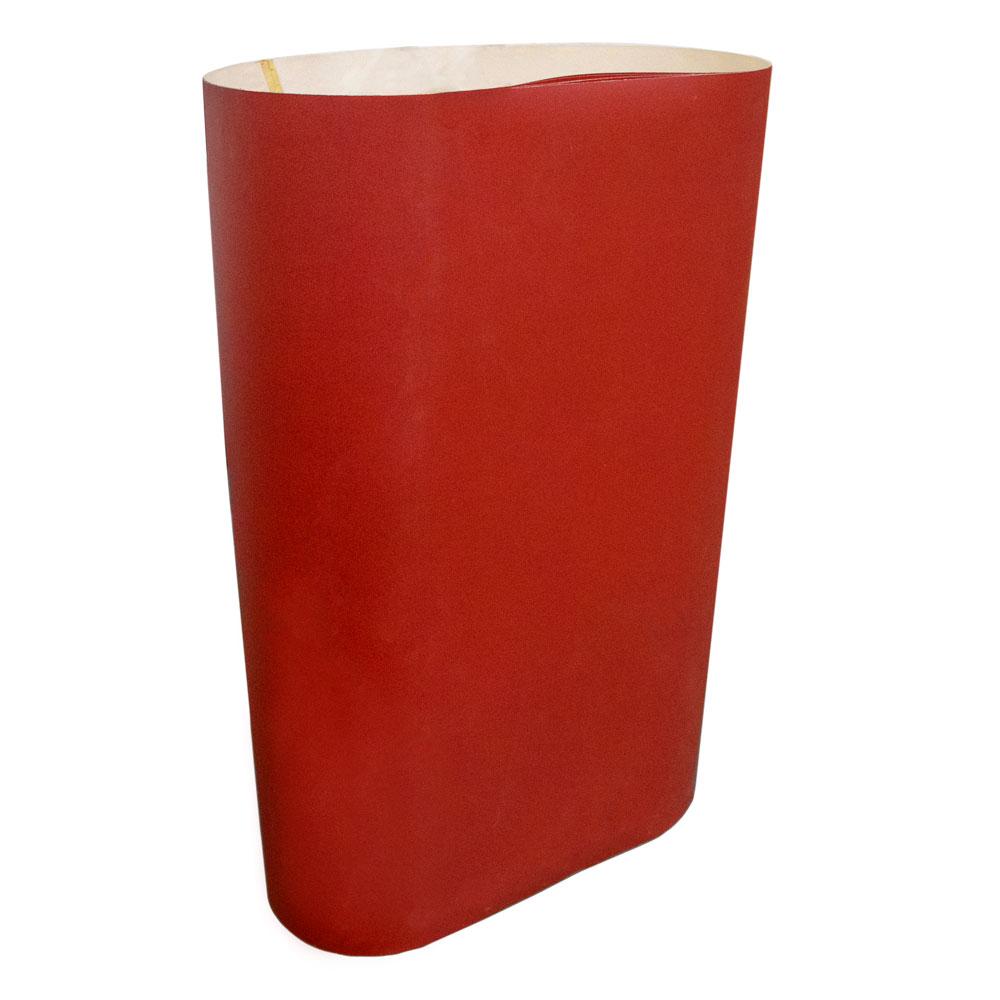

• Ceramic (orange-red grain): stainless sheet and plate, hardened and heat-treated steel, titanium and nickel alloys. The grain micro-fractures continuously and holds a steady cut rate through its life, which is what keeps a production line's stock removal predictable. It costs more per belt than zirconia and pays back on ferrous parts that would glaze or burn a lesser grain.

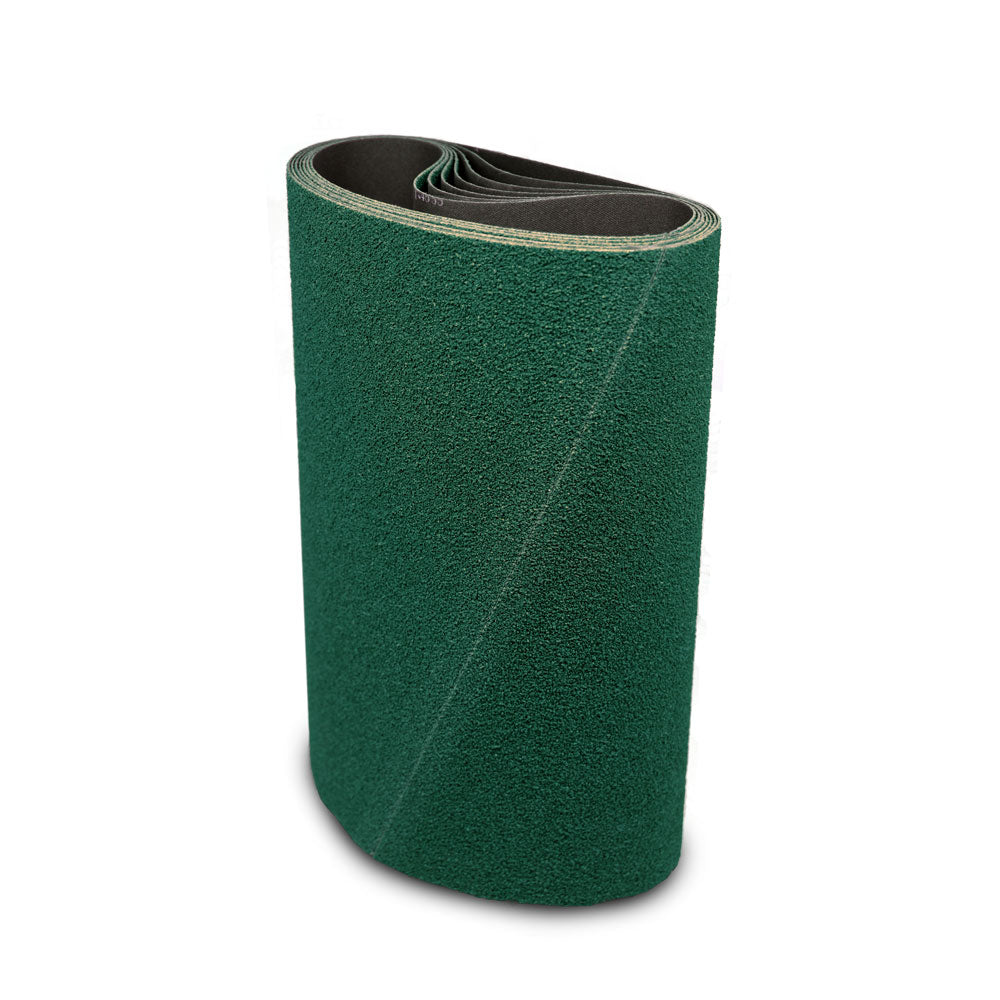

• Zirconia (green or blue): carbon and mild steel, weld knockdown, plate descaling and heavy removal where you want speed and cool cutting at a lower price than ceramic. Zirconia self-sharpens under load, so it is at its best in the 24–120 grit band; above that it stops fracturing and behaves like an expensive aluminum oxide.

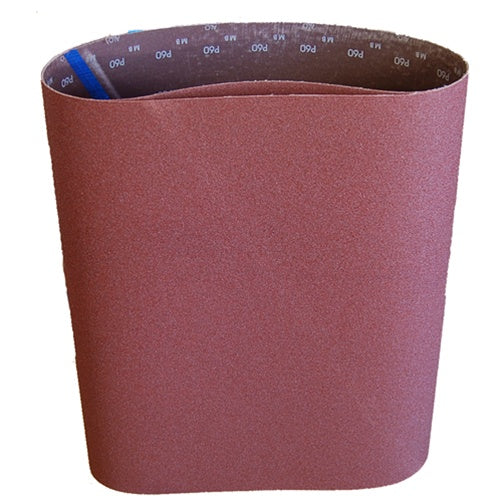

• Cloth A/O (brown aluminum oxide on poly-cotton): aluminum, brass and other soft metals at any grit, and the only grain for the finishing band from 150 up to 600. It is the most economical of the three and the standard choice for putting a graining finish on parts that have already been deburred.

A typical two-belt set on a line is a coarse ceramic or zirconia to remove burrs and mill scale followed by a 120–220 cloth A/O to set the finish. The 2-pack format lets you buy exactly that pair.

Grit guide for stainless, steel and aluminum on a wide belt

On aluminum, start no coarser than 60 unless you are levelling heavy castings; run the cloth A/O with a grease stick or grinding lubricant and finish at 120–220 before any surface conditioning step. Never step more than one grit at a time on parts that will be visible; the finish belt only removes the scratch immediately before it.

What machines take a 53" x 103" belt?

• 52–54" industrial wide belt finishing and deburring machines, the Timesaver-class single- and multi-head lines used for stainless sheet, steel plate and laser-cut or punched blanks.
• Wide belt graining and calibrating machines in metal shops that run a contact drum for removal and a platen head for the finish grit.
• Combination deburring lines where a coated belt head is followed by brush or non-woven heads; this belt is the coated stage.

Match both width and length to your machine's manual. Most wide belt machines accept a small variation in length, so a 53" x 103" belt is the right call if that is the size your machine lists. Check the inside of the belt for a direction arrow before mounting, centre the oscillation, and make sure the machine's dust system is a dedicated metal-rated collector or wet collection. Steel dust mixed with wood dust in one collector is a fire risk.

How to get the most out of it

1. Give ceramic and zirconia real pressure. Both grains only stay sharp when they are loaded hard enough to micro-fracture. Set the removal depth so the belt is cutting, not rubbing; a glazed, shiny belt and blued stainless mean the pass is too light.
2. Keep the part moving. Dwell is what blues stainless and warps thin sheet. Use a steady feed and let the belt do the work in more than one pass rather than one heavy one.
3. Slow down for aluminum, speed up for steel. Use the lower belt speed for aluminum and apply a grease stick to the running belt so the grain does not load; steel prefers the higher speed and no lubricant unless you are running wet.
4. Run wet where the machine allows. The Y-weight poly-cotton backing on the zirconia and ceramic belts and the poly-cotton on the cloth A/O can be run wet or dry. Coolant controls heat tint on stainless and keeps aluminum from packing the belt.
5. Do not skip grits on visible parts. A 36 grit scratch will not come out with a 150 belt; it just gets polished at the bottom.
6. Store belts hanging in a dry space, never on the floor, and let a cold belt come up to shop temperature before you tension it.

Use it for / don't use it for

Use it for

• Deburring and edge-rounding laser-cut, plasma-cut and punched steel and stainless blanks
• Removing mill scale and weld reinforcement from plate
• Directional graining of stainless sheet, panels and appliance parts
• Levelling and finishing aluminum extrusions, castings and tread plate
• Pre-polish before buffing on stainless and aluminum

Don't use it for

• Hardwood or MDF calibrating, where our 53" x 103" wood belts in A/O and zirconia are the better fit
• Zirconia or ceramic above 120 grit when you expect a finish; use cloth A/O instead
• Machines whose dust collection also handles wood dust
• Hand-fed light-duty machines that cannot load ceramic grain properly

Ceramic or zirconia: how to think about cost per part

The old rule of thumb on our metal belts still holds: ceramic costs more per belt than zirconia, zirconia costs more than aluminum oxide, and the order of belt life on ferrous metal runs the same way. On a production line the belt is a small share of the cost of each part; belt changes, rejected parts and heat damage are the larger cost.

That is why ceramic is usually the cheaper belt per stainless part even though it is the most expensive belt in the box, and why zirconia is the value choice on carbon steel where heat is less of a problem. For aluminum, cloth A/O with a grease stick is both the cheapest and the cleanest option. For bulk and case pricing on any of the three, call 714-646-3299 or email sales@maverickabrasives.com.
