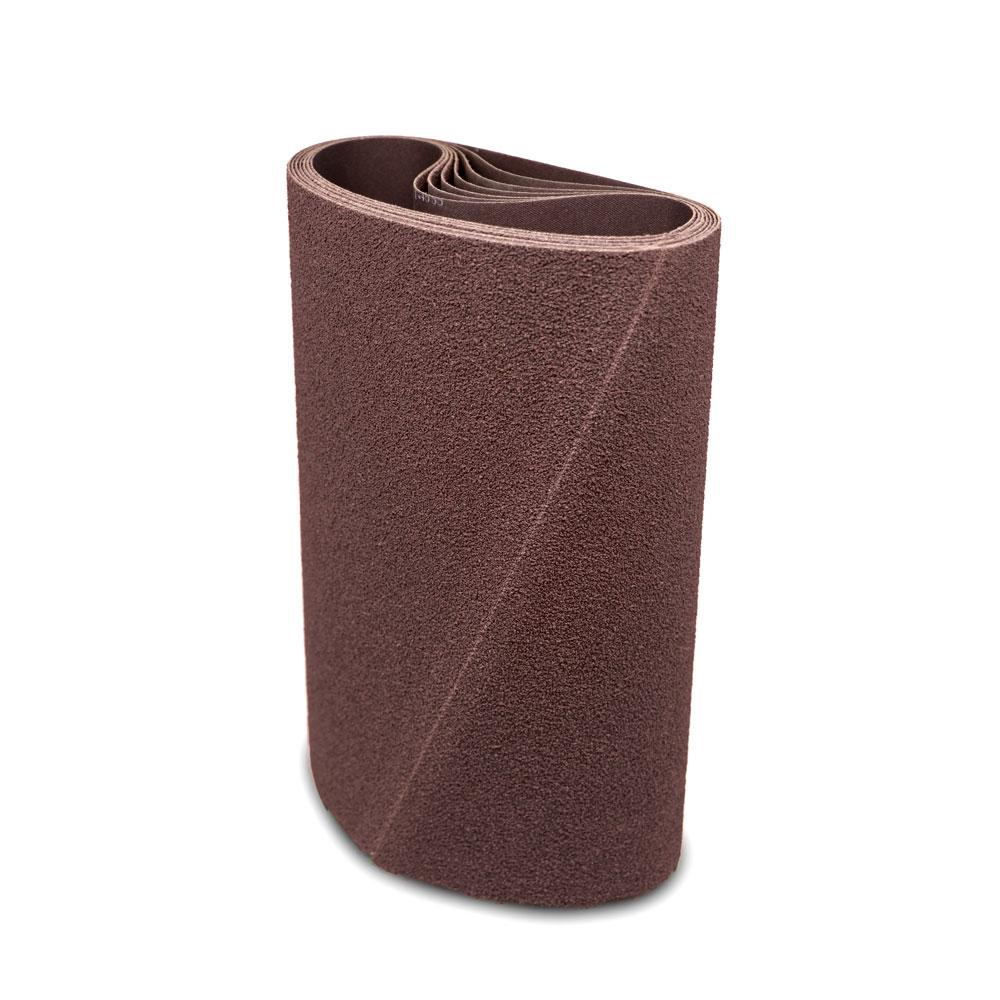

43" x 103" Sanding Belt, 2 PACK
43" x 103" Sanding Belt, 2 PACK
Available in stock (49999)
The 103-inch loop is the longest belt we stock for 43-inch wide belt sanders, and length is not a detail: a longer belt carries more grain, passes any one point over the drum less often, and runs cooler than a 75- or 85-inch belt doing the same work. These are closed-coat aluminum oxide belts on poly-cotton cloth, converted to 43" x 103" and sold two to a pack in one grit.
Door shops, millwork plants and panel processors running Timesaver-class 43-inch machines with the 103-inch belt path buy this size. Grits run 36 through 320 to cover every head from calibrating to a final skim pass on veneer. Aluminum oxide is the right grain for hardwood, plywood and MDF at production feed rates. Converted in Anaheim, California.
- Closed-coat aluminum oxide on poly-cotton cloth for 43-inch wide belt sanders with a 103-inch belt path
- Longest 43-inch belt we stock: more grain per belt and cooler running than 75- or 85-inch loops
- Nine grits, 36 to 320, for calibrating, surfacing and finishing heads
- 2-pack per grit; case quantities quoted for production lines
- Cloth backing holds tension and tracks on long belt paths
- Converted in Anaheim, California; free shipping over $200
Which grit does each head need on a 43-inch sander?
This listing is A/O - Aluminum Oxide only. The old page also described zirconia; it is not stocked in 43" x 103" but can be converted to order for a calibrating head that runs dense hardwood all day or for steel. For panel work aluminum oxide is the right grain at every head.
- 36 grit: calibrating head. Rough-sawn stock, glue-ups with ridges, panels that need real thickness taken off. Contact drum, shallow passes.
- 60 grit: dimensioning, or the first head when stock arrives close to size.
- 80 and 100 grit: surfacing heads. 80 is the belt that runs the most hours on a door line.
- 120 and 150 grit: pre-finish; the last head for paint-grade MDF and primer-ready plywood.
- 180 and 220 grit: finishing head, ideally on a platen, for the last pass before stain or clear on hardwood. Do not go finer than 220 under stain.
- 320 grit: a skim pass on veneered panels, figured hardwood and pieces that will be oiled or clear-coated, and a fine finishing belt for aluminum sheet.
A typical two-head setup on a door line is 80 on the drum and 150 or 180 on the platen; a three-head line often runs 60, 120 and 180 or 220.
Grit guide for doors, panels and millwork
| Grit | Use it for | Notes |
|---|---|---|
| 36 | Calibrating rough stock, glue-ups | Contact drum; up to 1/32 in per pass |
| 60 | Dimensioning | Do not jump to 150 |
| 80–100 | Surfacing planed stock | Highest-hours belt on most lines |
| 120–150 | Pre-finish, paint grade | Less than 1/64 in per pass |
| 180–220 | Final before stain or clear | Platen head; stop at 220 under stain |
| 320 | Veneer skim, oil and clear finish | No stock removal |
What machines take a 43" x 103" belt?
- 43-inch industrial wide belt sanders in the Timesaver 43 class whose belt path is 103 inches. "Timesaver" is used in the trade for wide belt sanders in general as well as for the brand, and the old page used it that way.
- 43-inch machines with shorter belt paths take our 43" x 75" or 43" x 85" belts. Length tolerance on most wide belt sanders is about plus or minus 1/4 inch, so match the size plate on the head.
To confirm the length of an unmarked belt, lay it flat, mark one point on the outside, and roll it one full turn along a tape. Mounting: retract the tension roller fully, carry the belt on without creasing it, tension, then set tracking with the oscillation running so the belt swings evenly between the limit sensors. Check the inside of the belt for a direction arrow before mounting and run it that way if one is printed. For a width or length not on the site, we convert custom belts in about 3 days.
How to get the most out of it
- Put the length to work. A 103-inch belt cools between contacts better than a shorter loop, which lets you hold feed speed on burn-prone species like cherry and maple. It does not license deeper passes: stay at 1/64 to 1/32 inch per pass at 36 to 60 grit and less as grit gets finer.
- Drum for calibrating, platen for finishing. Coarse grits remove stock on the contact drum; 150 grit and finer belong on the platen, which floats the belt over the panel and takes out drum scallop.
- Step grits one at a time between heads. 36, 60, 80, 120, 180, 220. A skipped grade leaves coarse scratches under a finish that looks good until stain hits it.
- Keep extraction strong on every head. Loading is the number one killer of wide belts, and a 43-inch head moves a lot of dust.
- Clean belts on the machine. A crepe-rubber belt eraser held lightly against the running belt pulls resin and dust out of the grain and can add a shift to a finishing belt.
- Feed panels across the width so the belt wears evenly instead of in a track down the centre.
- Store spares hanging on a rack, away from humidity and sunlight, and let a cold belt come to shop temperature before mounting. A 103-inch belt left folded on the floor takes a set and thumps on the drum.
Our blog covers the two calls we get most on 43-inch machines: why wide sanding belts break and chatter marks and finish problems on wood.
Use it for / don't use it for
Use it for
- Interior and exterior door slabs, stiles and rails, and raised panels up to 43 inches wide
- Glued-up tabletops, countertops and stair treads
- Paint-grade MDF and plywood surfacing
- Veneered panels at 150 grit and finer on the platen
- Aluminum sheet and composite panels, dry
Don't use it for
- Steel plate and weld removal as a daily job; that calls for zirconia, which we can convert to order
- Wet sanding; these are dry-use belts
- Running a belt with a lifted joint, a crease or a torn edge
- Finishing finer than 220 on wood that will be stained
- Machines whose belt path is 75 or 85 inches
Specifications
| Size | 43" wide x 103" long |
|---|---|
| Abrasive grain | A/O - Aluminum Oxide |
| Backing | Poly-cotton cloth |
| Coat | Closed coat |
| Joint | Check inside of belt for a direction arrow before mounting |
| Grits offered | 36, 60, 80, 100, 120, 150, 180, 220, 320 |
| Pack quantity | 2 belts, one grit per pack |
| Wet or dry | Dry |
| Machine type | 43-inch industrial wide belt sanders, 103-inch belt path |
| Converted in | Anaheim, California |
| Custom sizes | Made to order in about 3 days |
Frequently asked questions
Does a 43" x 103" belt last longer than a 43" x 85"?
On the same head doing the same work, yes. A 103-inch belt has about 20 percent more abrasive than an 85-inch belt and each point on it contacts the panel less often per minute, so it runs cooler and takes longer to load and dull. The length is fixed by your machine, though; it is not a choice you make at ordering time.
Can I get zirconia or ceramic in 43" x 103"?
Not as a stocked item; this page is closed-coat aluminum oxide only. Zirconia pays for itself on a calibrating head that runs dense hardwood or steel at 36 to 60 grit all shift. For that we will quote a custom 43" x 103" zirconia run by phone at 714-646-3299 or email at sales@maverickabrasives.com.
Which grit do I put on the platen head for stain-grade doors?
150 or 180 for most hardwood, 220 if the finish schedule calls for it. Run these on the platen rather than the drum so the belt floats over the panel and removes the slight scallop the calibrating drum leaves. Do not go finer than 220 under stain; the surface burnishes and takes color unevenly.
Should I switch to open coat for softwood door stock?
Only if you run soft, resinous species such as pine most of the time. These belts are closed coat, which carries more grain and lasts longer on hardwood, MDF and plywood, and it is correct for all metal work. For an all-pine line we can convert an open-coat belt to order; otherwise control loading with extraction and a belt eraser.
How do I know if my belt is worn out or just loaded?
Look at the surface. A loaded belt is glazed brown or grey with packed dust between the grains, and a crepe eraser pressed lightly against it while running brings most of the cut back. A worn belt looks clean but dull, with rounded grain and bare cloth showing at the edges; no cleaning will help it. Most belts pulled early are loaded, not worn.
How many belts are in the pack and what are the ordering terms?
Each pack contains two 43" x 103" belts of the same grit. Orders over $200 ship free, unused belts in original packaging can be returned within 30 days, and case pricing for production lines is quoted by phone or email. Custom widths and lengths are converted in about 3 days.
