18" x 48" Sanding Belt, 3 PACK

Compact 18-inch wide belt sanders with a 48-inch loop are the first real wide belt machine many one- and two-person shops own: wide enough for a cabinet door or a cutting board, short enough to run on single-phase power in a garage bay. These 18" x 48" belts on X-weight poly-cotton cloth are converted for them, in closed-coat aluminum oxide for wood and general work and zirconia for heavy stock removal.

Three belts to a pack, one grain and one grit per pack, from 36 through 400 grit. The heavy anti-static cloth is the same we use on our industrial belts, so it tolerates the tracking quirks of an older or lightly built machine. Converted in Anaheim, California; other 18-inch lengths made to order.

• X-weight poly-cotton cloth that tracks steadily on compact 18-inch drums and platens
• Anti-static treatment reduces dust cling and loading in a small-shop collector
• Closed-coat aluminum oxide from 36 to 400 grit for hardwood, plywood, MDF and aluminum
• Zirconia at 36–120 grit for flattening glue-ups and cutting boards fast
• Three belts per pack: a calibrating, surfacing and finishing grit for one machine
• Converted in Anaheim, California; other 18-inch lengths made to order

Which grain should a small shop run on an 18-inch sander?

Both grains come in every grit from 36 to 400. On a compact single-head machine you change belts between passes, so most shops end up with a zirconia belt for the first pass and aluminum oxide for the rest.

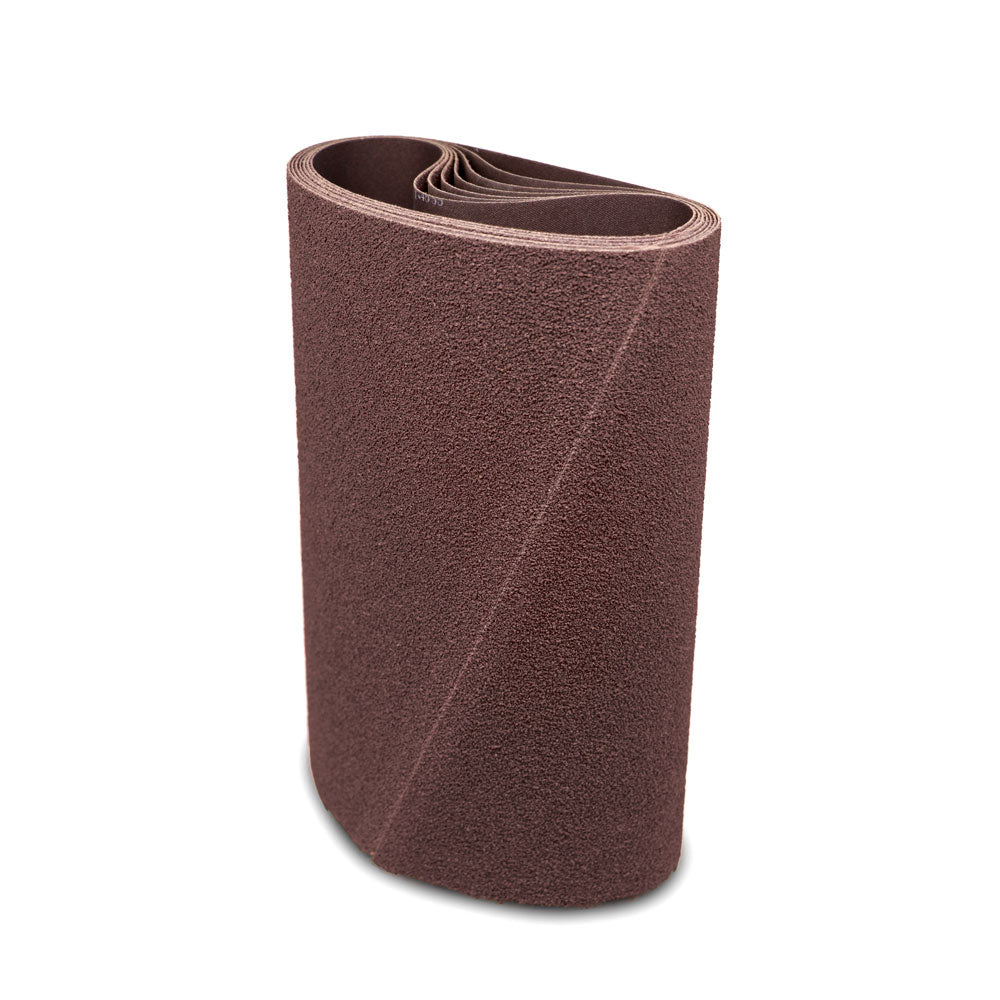

• Cloth Closed Coat A/O: aluminum oxide on fully grain-covered X-weight cloth. It cuts well at the moderate pressure a smaller motor can deliver and gives an even scratch on hardwood, plywood, MDF and veneer. It is the grain for aluminum, brass and plastics too, and the only grain we recommend above 120 grit. Closed coat carries more grain than open coat, so it lasts longer on hardwood; open coat only makes sense on very soft, pitchy softwood.

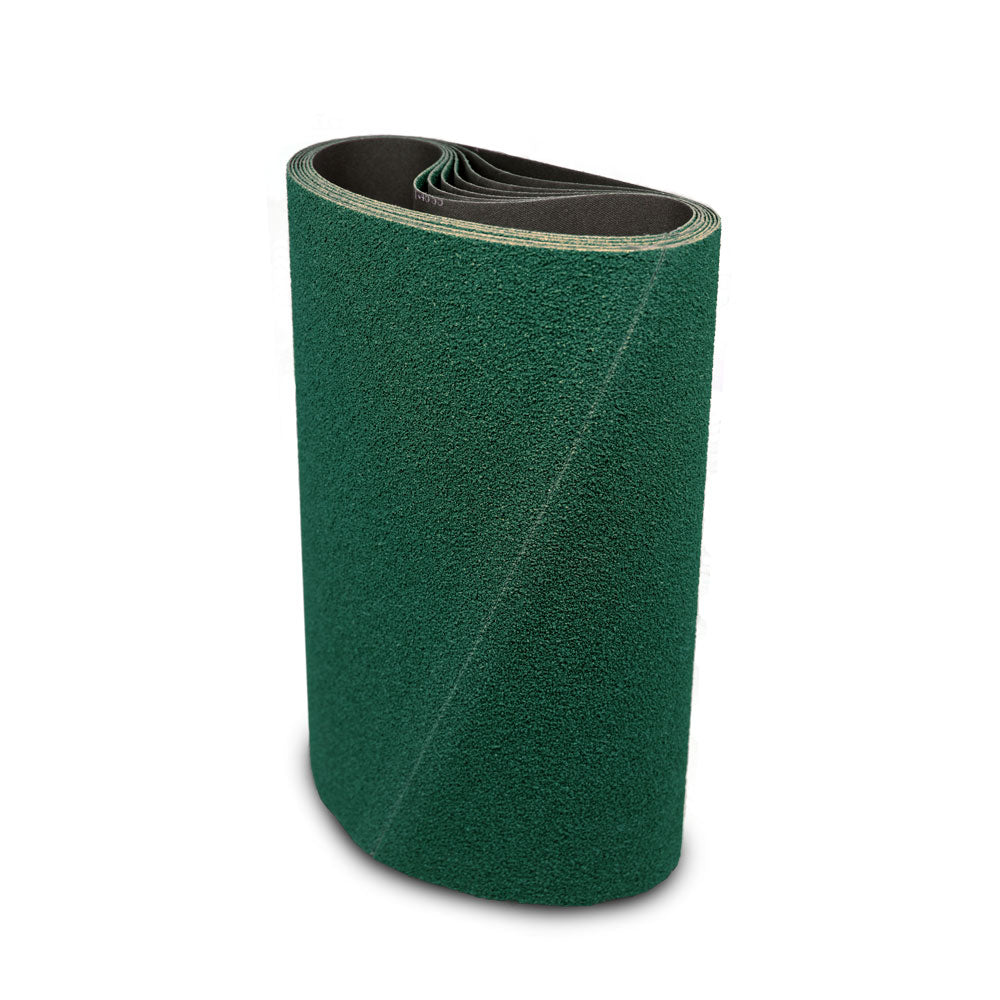

• Zirconia: for flattening glue-ups, end-grain boards and levelling stepped joints at 36, 40, 60 or 80 grit. It fractures under load and keeps cutting where aluminum oxide would round over. It needs a real depth of cut to self-sharpen; a light skim glazes it, so use it for the heavy pass and switch to aluminum oxide for surfacing and finishing.

For mild steel plate on a machine set up for metal, run zirconia at 36 to 80 with a metal-rated collector; for aluminum use closed-coat aluminum oxide and a grease stick.

Grit guide for cabinet doors, boards and small panels

Step no more than one grade at a time. A typical three-pack set for a small shop is 80, 120 and 180; add 60 zirconia if you flatten glue-ups.

What machines take an 18" x 48" belt?

• Compact 18-inch wide belt sanders sold for small shops, schools and serious home shops, typically single-head and single-phase.
• Small Timesaver-type finish sanders and other automatic sanders whose plate reads 18" x 48", including older machines with imperfect tracking.
• Combination drum-and-belt machines that specify an 18 x 48 loop; confirm against the manual.

We do not have a verified list of current models for this size, so match both numbers on your machine plate. Note that 18" x 48" and 19" x 48" are different belts; an inch of width will not clear the tracking sensors on many machines. Length tolerance is usually about a quarter inch. Check the inside of the belt for a direction arrow before mounting. Other 18-inch lengths are converted as custom belts in about 3 days.

How to get the most out of it

1. Track empty first. A short 48-inch loop reacts fast to tracking changes; let the belt centre itself before feeding stock and re-check after a few minutes.
2. Take light passes. A compact machine has limited horsepower; 1/64" per pass at 36–60 grit and a skim at 120 and finer keeps the motor from bogging and the belt from heating.
3. Keep the conveyor moving. Stopping a panel under the head burns maple and cherry in seconds.
4. Use the full belt width. Run narrow parts down different tracks so the belt wears evenly and does not groove in the middle.
5. Extract dust and clean the belt. Small-shop collectors are often marginal; run yours at full airflow and clean aluminum oxide belts with a crepe rubber eraser at light pressure when they start to shine.
6. Store belts hanging, dry and out of sunlight, and warm cold belts to shop temperature before mounting.

If belts are tearing at the joint, our guide to why sanding belts break walks through the causes. For ripple and washboard marks, see the woodworking chatter Q&A.

Use it for / don't use it for

Use it for

• Cabinet doors, drawer fronts and face frames on a compact wide belt sander
• Flattening and finishing cutting boards and small glue-ups
• Plywood, MDF and veneered parts before paint or stain
• Aluminum, brass and plastics with aluminum oxide; mild steel with zirconia

Don't use it for

• Machines plated for 19" x 48" or any other size
• Zirconia above 120 grit where the finish matters
• Deep passes that stall a single-phase motor; take more passes instead
• Wet sanding, or one collector for both wood and steel dust
