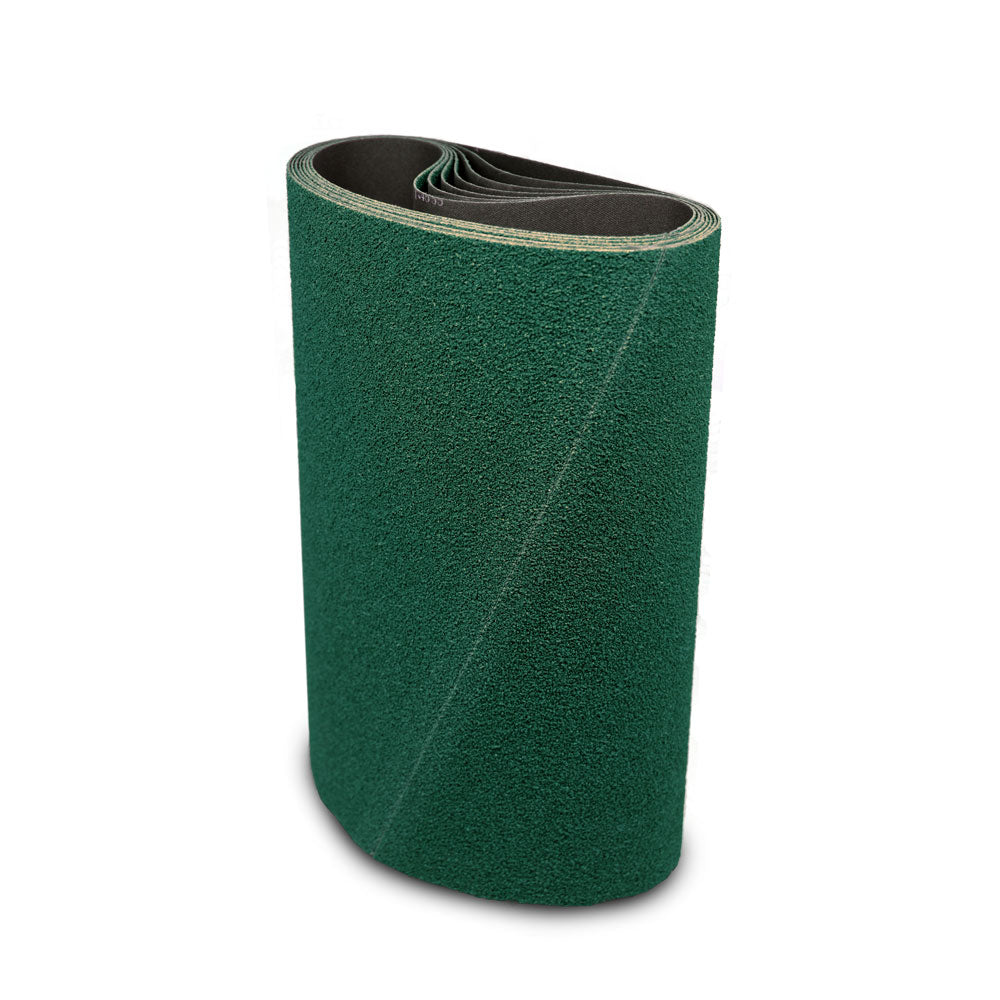

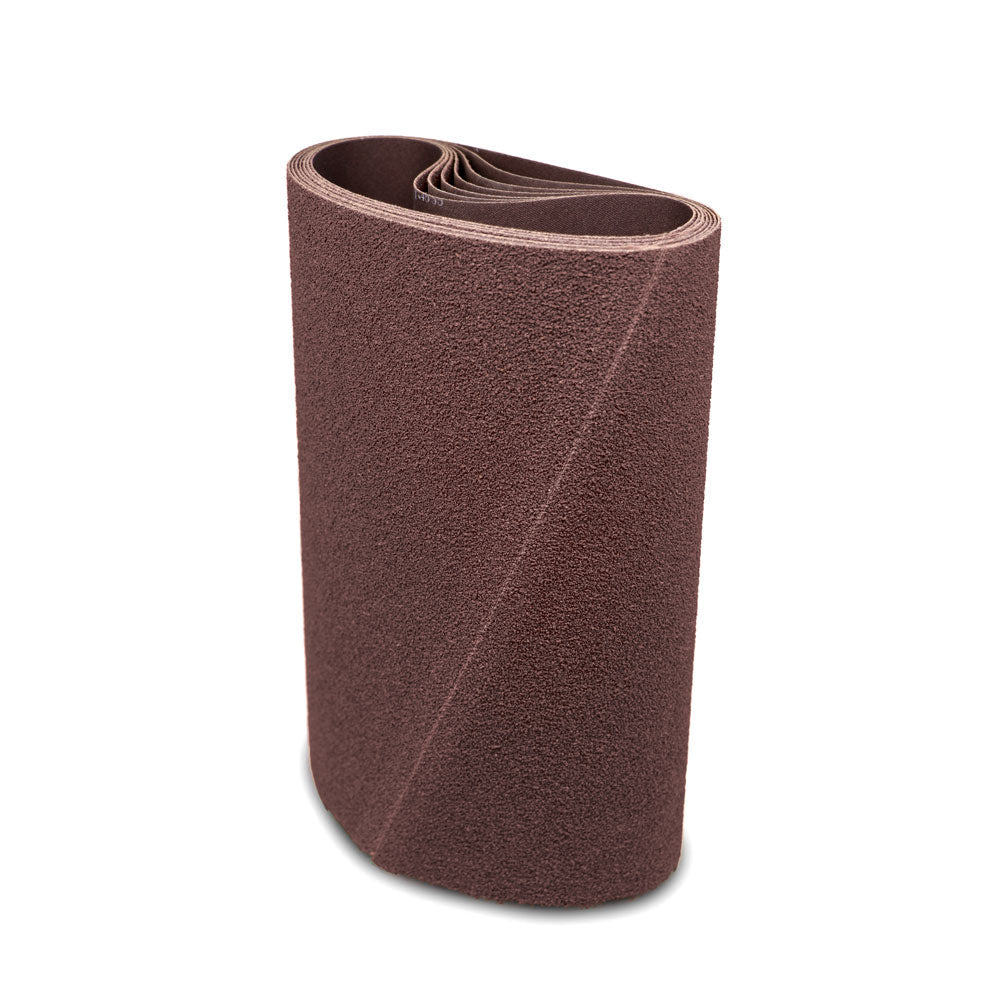

54" x 75" Sanding Belt, 3 PACK

The 75-inch loop is the shortest belt we convert in a 54-inch width, and it is the one size in this family where we offer three backings: closed-coat aluminum oxide on X-weight cloth, aluminum oxide on paper, and zirconia on cloth. Compact 54-inch wide belt sanders in cabinet and millwork shops are the usual home; the paper option exists for shops that run mostly fine finishing grits and want a lower belt cost per pass.

All three come three to a pack, one material and one grit per pack, from 36 through 400 grit. Cloth for anything that sees pressure or heat, paper for light finishing passes on the platen, zirconia for calibrating hardwood. Converted in Anaheim, California, with other 54-inch lengths made to order.

• Three backings in one listing: cloth aluminum oxide, paper aluminum oxide and cloth zirconia
• Paper A/O lowers belt cost on light finishing passes at 120–400 grit
• X-weight poly-cotton cloth for calibrating, surfacing and any pass with real pressure
• Zirconia at 36–120 grit keeps cutting through hardwood glue-ups and end grain
• Three belts per pack so a compact single-head machine has a spare for each grit
• Converted in Anaheim, California; other 54-inch lengths made to order

Cloth, paper or zirconia: which 54" x 75" belt should you order?

This size gives you a real choice of backing as well as grain, so match the belt to the pass it will make.

• Cloth Closed Coat A/O: aluminum oxide on X-weight poly-cotton cloth with the grain fully covering the backing. The all-round belt for hardwood, MDF, plywood, veneer, aluminum and composites, from 36 grit calibrating on softer stock to the 180–220 pass before stain. Cloth resists tearing at the joint, handles heat and pressure, and tolerates an older machine's tracking. If you only stock one belt type, stock this one.
• Paper A/O: the same aluminum oxide grain on a paper backing. Paper is stiffer and cheaper than cloth, and it gives a very flat, even scratch on a platen head at 120 grit and finer. It is less tolerant of heavy pressure, heat, edge impact and rough tracking, and it tears more readily, so keep it on light finishing and sealer-flatting passes and out of the calibrating head.
• Zirconia (cloth): the calibrating grain. It fractures under load to expose fresh edges and holds its cut on maple, oak, hickory and glue lines at 36, 40, 60 or 80 grit. It needs pressure to work and glazes on a finishing head, so use it for the first pass and switch to aluminum oxide above 120.

Open coat is not offered in this size. Closed coat lasts longer and cuts cleaner on everything but very soft, pitchy softwood, and it is always the answer for metal.

Grit guide by backing for a compact 54-inch sander

Never skip more than one grade between passes. A common three-pack set for a compact machine is 80 cloth, 120 cloth and 180 paper.

What machines take a 54" x 75" belt?

• Compact single-head 54-inch wide belt sanders in cabinet, millwork and closet shops whose plate reads 54" x 75".
• Short-frame 54-inch finishing sanders running behind a separate calibrating machine, where paper aluminum oxide on a platen head is common.
• Wide belt sanders configured for aluminum or steel sheet, using cloth aluminum oxide or zirconia only, with a metal-rated collector.

Match both numbers on the plate. Most sanders accept about a quarter inch of length variation, so a 75-inch belt does not substitute for a 85-inch, and a 54-inch width does not substitute for 52 or 53. Cloth belts run bi-directionally; check paper belts for a direction arrow on the inside and run them that way. For other lengths we convert custom belts in about 3 days.

How to get the most out of it

1. Track empty first. A short 75-inch loop reacts quickly to tracking changes; let the belt settle in the centre of the drum before feeding stock, and re-check after it warms.
2. Keep paper belts on light passes. A skim of a few thousandths at 120 and finer on the platen. Paper tears at the joint if it is asked to calibrate or if a panel edge strikes it hard.
3. Calibrate in 1/32" passes or less with zirconia or cloth aluminum oxide at 36–60 grit. A short loop has less cloth to shed heat, so light passes and steady feed matter more here than on a long-bed machine.
4. Keep the conveyor moving. Dwell burns maple and cherry and glazes MDF edges regardless of backing.
5. Run strong extraction. Loading kills belts; clean cloth aluminum oxide with a crepe rubber eraser at light pressure. Do not use the eraser hard on paper.
6. Store paper belts flat in their box or hanging on a wide bar, never creased; store cloth belts hanging. Keep both dry and out of sunlight, and let cold belts warm before mounting.

If joints are failing, read our guide to why wide sanding belts break. For ripple and chatter marks, see the woodworking chatter Q&A.

Use it for / don't use it for

Use it for

• Cabinet doors, face frames, drawer parts and panels on compact 54-inch sanders
• MDF, plywood and veneered panels before paint or stain
• Light finishing and sealer flatting with paper aluminum oxide at 120–400
• Calibrating hardwood glue-ups with zirconia at 36–80
• Aluminum and composite sheet with cloth aluminum oxide on machines set up for metal

Don't use it for

• Calibrating, heavy pressure or metal with the paper-backed belt
• Machines plated for a different width or length
• Zirconia above 120 grit where the finish matters
• Wet sanding; paper belts in particular must stay dry
• One collector shared between wood dust and steel dust
