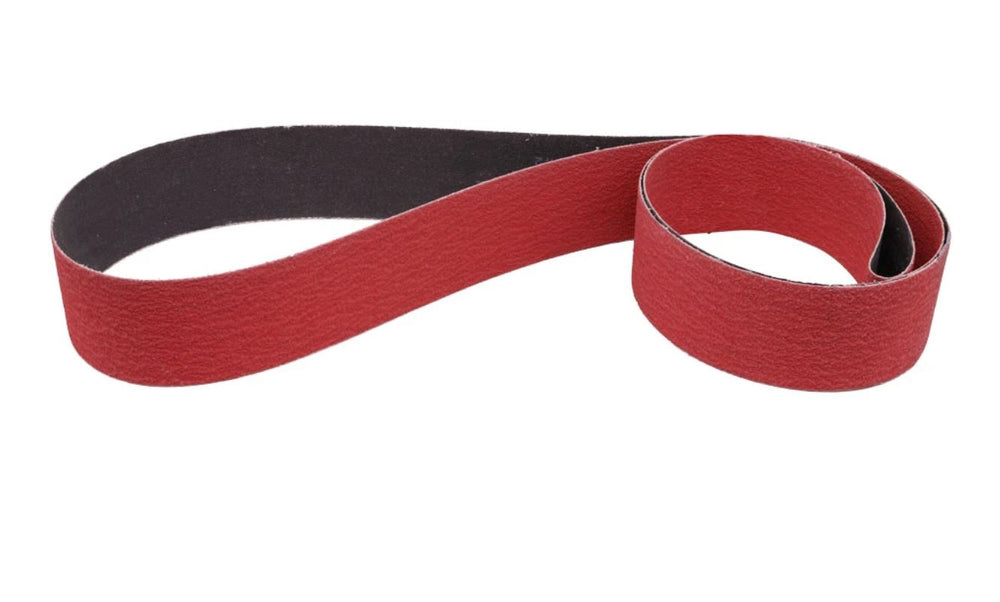

Quick answer: Ceramic sanding belts use a micro-crystalline ceramic aluminum oxide grain that fractures in tiny pieces as it wears, constantly exposing fresh sharp edges. That's why they cut faster, run cooler and last several times longer than standard aluminum oxide on steel, stainless and hardened metal. They're usually red or orange, coated on a stiff Y-weight polyester backing, and they need pressure to work – run them hard on a grinder and they pay for themselves; run them lightly on soft material and they glaze.
What makes ceramic grain different
Ordinary aluminum oxide grain is a fused crystal that dulls as its edges round over. Ceramic grain is made differently – sintered from fine alumina particles into a micro-crystalline structure – so under pressure it breaks off in microscopic fragments instead of rounding. Every fragment leaves a new sharp cutting edge. The result is a belt that keeps a consistent, uniform cut for its whole life, removes stock faster, and generates less heat doing it. Cooler cutting matters on stainless (which work-hardens and discolors) and on hardened steel (which loses its temper).
| Aluminum oxide | Zirconia | Ceramic | |
|---|---|---|---|
| How it wears | Edges round and dull | Fractures to self-sharpen | Micro-fractures to self-sharpen |
| Cut speed on steel | Good | Better | Best |
| Heat | Highest | Medium | Lowest |
| Belt life on steel | 1x | 2–3x | 4–6x or more |
| Cost per belt | Lowest | Medium | Highest |
| Cost per part | Highest on metal | Medium | Lowest on metal |
| Needs pressure? | No | Some | Yes |
The backing
Our ceramic belts are coated on a Y-weight polyester backing – the stiffest and strongest cloth backing made. Backing weights run on a letter scale: A through F are paper, from very flexible A-weight sheets to E and F-weight paper used for wide belts in woodworking; J, X and Y are cloth. X-weight is often a cotton-poly blend with some flexibility and is the standard for general metalworking; Y-weight is full polyester, very sturdy, and is what a ceramic grain needs so the backing doesn't stretch or tear under the pressure ceramic works best at. At the other end, J-flex is a very flexible cloth for slack-belt work and contouring – a knife handle, for instance – which is a job for aluminum oxide, not ceramic. More in J-weight belts explained.
What ceramic belts are for
- Knife making – grinding bevels and profiling blades in 36–120 grit; the belt stays flat and sharp through a full blade instead of glazing halfway.
- Surface grinding and stock removal on steel, stainless and other ferrous metals.
- Weld removal and edge sanding in metal fabrication.
- Hardened and exotic alloys – tool steel, titanium, Inconel – where standard grains dull in minutes.
- Heavy wood removal where burning is a problem, such as maple and cherry on wide belt sanders.
How to get the most out of them
- Use pressure. Ceramic needs enough force to fracture the grain. A light touch just polishes the grain tips and the belt appears to stop cutting.
- Use speed. Run at the grinder's rated surface speed; slow belts and ceramic don't mix.
- Watch for burning. Because it cuts so fast, ceramic can burn if you dwell. Keep the work moving and quench when grinding blades.
- Stay in coarse grits. Ceramic is made in roughly 36–120 grit. Finish with aluminum oxide or J-flex belts in finer grits.
- Don't waste it on soft material. On aluminum, brass or softwood, ceramic loads and glazes; use open-coat aluminum oxide or zirconia instead.
Is it worth the price?
A ceramic belt costs more than aluminum oxide, but on steel it outlasts it many times over and cuts faster the whole time, so the cost per part – and the time per part – is lower. If you grind metal every day, ceramic is the cheapest belt you can buy. If you sand wood or soft metal occasionally, it isn't. Our aluminum oxide vs. zirconia guide covers the middle option.
Shop ceramic knife-making belts in 2" x 72" and other sizes, or order any size as a custom belt.
