Two belts per pack
Both belts use the selected backing, abrasive grain, and grit.

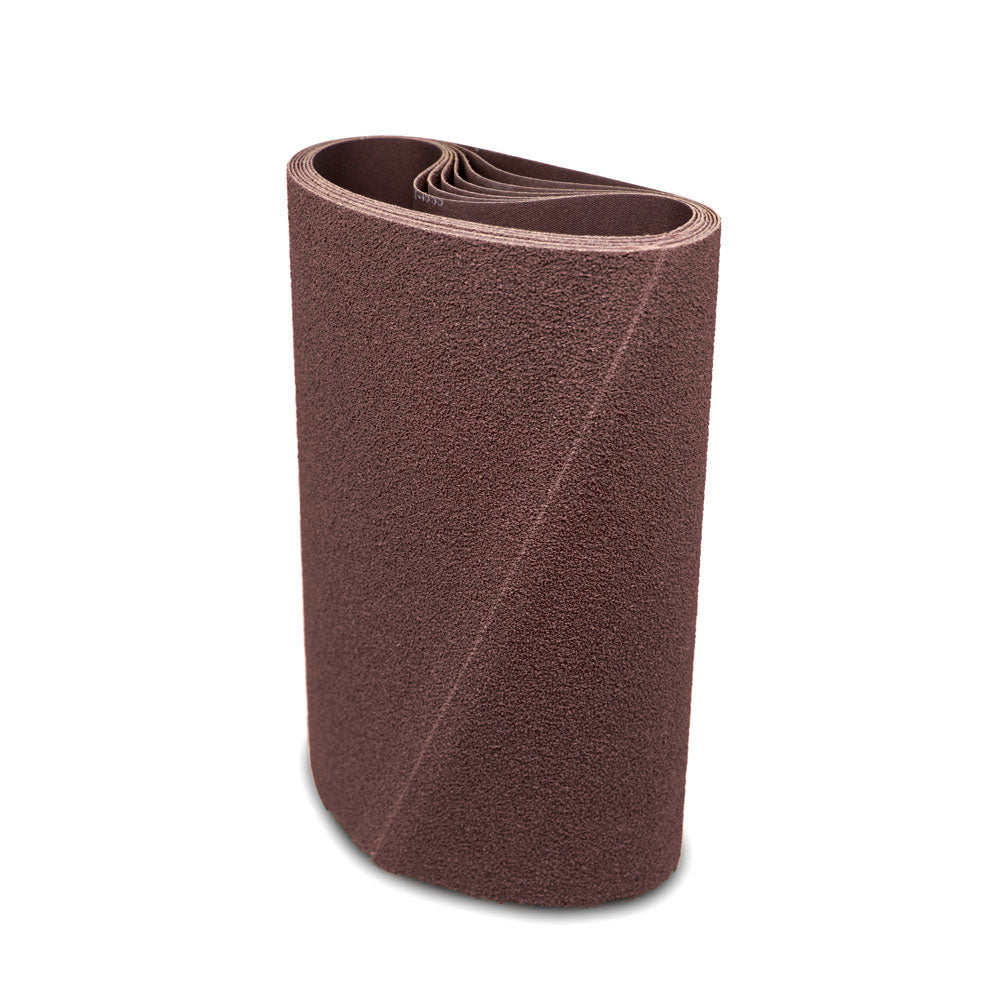

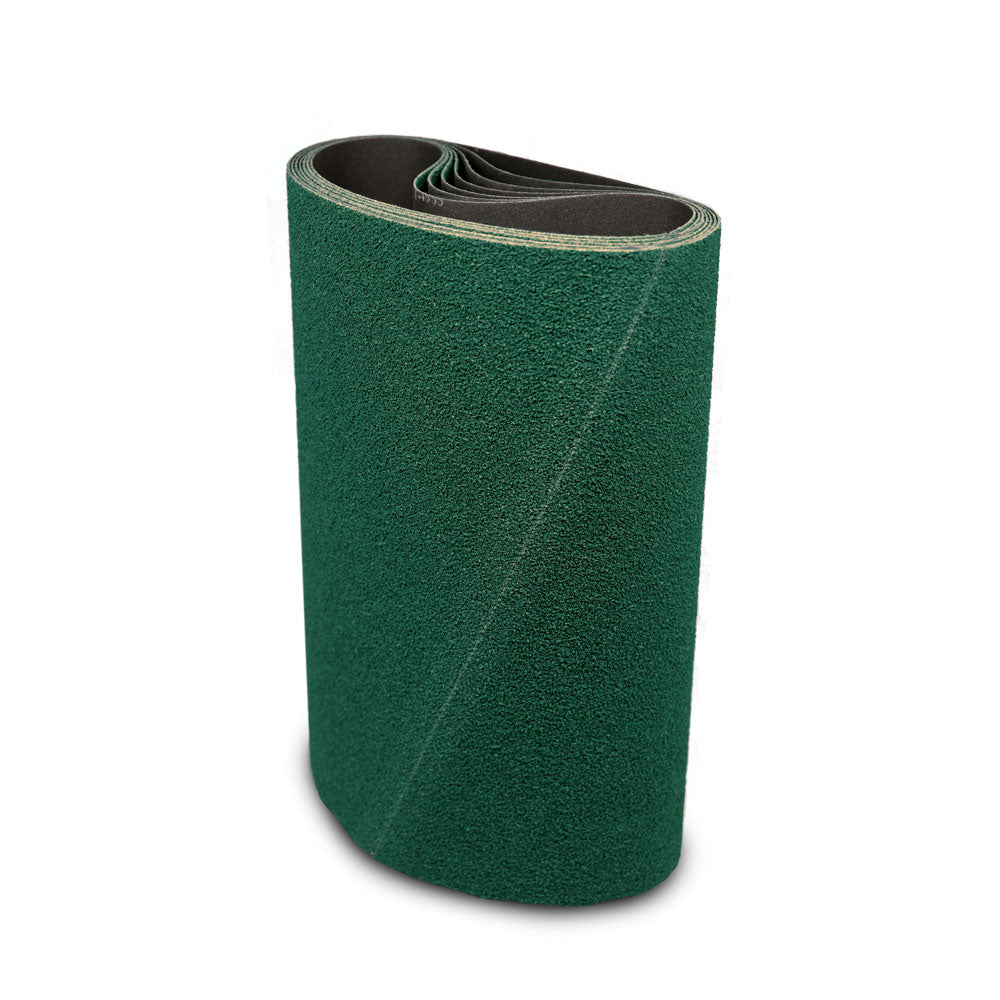

52-INCH × 103-INCH WIDE-BELT ABRASIVES
52" x 103" Wide Sanding Belts for Industrial Sanders
Two belts per pack with cloth aluminum oxide, zirconia, or selected paper aluminum oxide options for compatible 52-inch × 103-inch machines.
5.0 / 5from 6 reviews- Two 52-inch × 103-inch belts in every selected pack.
- 22 live material-and-grit combinations from 36 through 400 grit.
- Original machine list, construction notes, and grit-operation table are retained.
Regular price
$288.22
Sale price
$288.22
Regular price
Shipping calculated at checkout.
Available in stock
Choose construction before gritCloth aluminum oxide provides the widest range, zirconia covers heavy removal through 120 grit, and paper aluminum oxide is limited to selected 80–220 grits.
Couldn't load pickup availability
Secure payment
Payment methods
Available payment methods appear at checkout.
CONTROL THE CUT ACROSS A 52-INCH WORKING WIDTH
Choose the belt for calibration, scratch refinement, or finish preparation
Large-format sanding depends on exact belt fit, stable tracking, dust control, feed rate, pressure, and a sensible grit progression. Select the construction that matches both the machine and the production stage.
22 live combinations
Eleven cloth aluminum oxide, six zirconia, and five paper aluminum oxide choices are listed.
Customer-verified rating
5.0 out of 5 from 6 reviews. Available review content appears below.
DECISION GUIDE
Which 52" x 103" sanding belt should you choose?
The current product record describes anti-static treatment and a heat-resistant resin bond. Actual loading, heat, and finish depend on the complete machine and process.
Calibrating and heavy stock removal
Use coarse stages for leveling uneven panels and removing significant material.
Intermediate sanding
Use to reduce the deeper pattern from an earlier coarse stage before finish preparation.
Finish preparation
Use for controlled refinement before the coating or finishing process specified for the work.
Fine sanding
Use on suitable veneers or fine-finish work only after earlier scratches have been removed.
ORIGINAL MACHINE REFERENCES, RETAINED
Which machines are associated with this belt size?
These names come from the original product page and help identify likely applications. They are not fit guarantees; confirm the exact belt width and loop length in the machine manual.
AEM 103-52
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
Timesavers 52-inch series that specify a 103-inch loop
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
SCMI / Sandya models requiring 52 × 103
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
Bütfering machines requiring 52 × 103
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
Grizzly G0445 and compatible configurations
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
Haltek / Laguna machines requiring 52 × 103
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
Cemco 3152, 3252, 3352, 3452, 4152, 4252, 4352, and 4452 references
Verify the exact machine revision, belt dimensions, backing, joint, and operating requirements before ordering.
Fit check: A manufacturer or model-family name is not enough. Match both dimensions exactly and check any backing, joint, direction, tension, and speed requirements.
ABRASIVE AND PROCESS NOTES
What original technical guidance was retained?
The important material distinctions, grit ranges, bidirectional note, and troubleshooting links remain part of the page.
Broad-range general-purpose choice
Where listed, cloth aluminum oxide covers coarse removal through finer finishing stages. Selected products also offer paper aluminum oxide in a narrower range.
Coarse and medium stock removal
Where listed, zirconia is concentrated in 36–120 grit. The 43 × 60 product is the exception in this batch and currently offers aluminum oxide only.
Follow the delivered belt and machine
The original records describe these wide belts as bidirectional. A direction arrow or machine instruction on the actual product controls if present.
Remove the prior scratch before moving finer
Start with the least aggressive grit that will do the work, inspect the full surface, and use intermediate stages appropriate to the required finish.
HOW TO USE IT
Set up the wide belt for stable, repeatable production
Use the machine manual and workplace procedure for every belt change.
- 01
Lock out power and confirm the machine requires a 52-inch × 103-inch belt.
- 02
Inspect the backing, abrasive face, edges, and joint; reject visible damage.
- 03
Install in the specified direction and set tension and tracking.
- 04
Run without stock and verify clearance, tracking, and dust collection.
- 05
Test a representative panel and inspect the full width before production.
Use the guarding, extraction or collection, personal protective equipment, training, and operating procedures required by the machine, abrasive product, work material, and workplace.
Use it for
- Compatible 52-inch × 103-inch wide-belt sanders
- Panel calibration and stock removal
- Intermediate scratch refinement
- Wood or metal finishing with the matched abrasive and process
- Bidirectional use when permitted by the belt and machine
Do not use it for
- A nominal 52-inch machine that specifies another loop length
- A damaged belt or unstable tracking condition
- Skipping grit stages before the prior scratch is removed
- Operation without the required dust or spark collection
- Assuming a listed machine family guarantees fit
PRODUCT FAQ
Questions before you choose?
What materials and grits are available?
Closed-coat cloth aluminum oxide is listed in 36–400 grit, zirconia in 36–120 grit, and paper aluminum oxide in 80, 120, 150, 180, and 220 grit.
Does the original page include machine references?
Yes. It references AEM, Timesavers, SCMI/Sandya, Bütfering, Grizzly, Haltek/Laguna, and several Cemco models. Verify the exact 52-inch width and 103-inch loop length in the machine documentation.
What does anti-static treatment do?
The current product record describes an anti-static treatment intended to reduce dust accumulation. It does not replace the dust-collection and grounding procedures required by the machine and work material.
Can these belts run in either direction?
The current product record describes bidirectional use. Follow any direction marking on the delivered belt and the machine manual if either specifies a direction.
What comes in the order?
Each selected variant is a two-pack in one material and grit.
What are the shipping and return terms?
Shipping methods, rates, and delivery estimates depend on the order and destination and are shown at checkout. The return policy provides a 30-day window for eligible unused items in original condition and packaging. Restrictions and return-shipping costs apply.
READY TO CHOOSE?
Build the next 52" × 103" sanding stage
Confirm the machine size, choose the backing and grain, then select the grit for the current operation.
